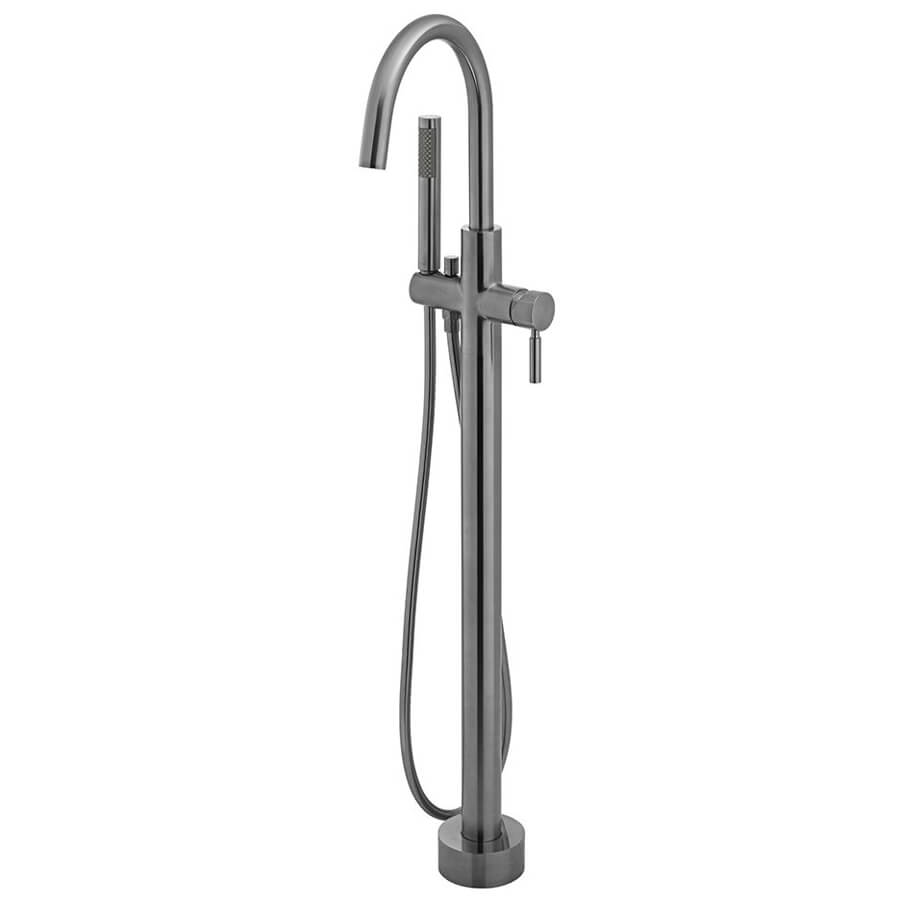

Vado Individual Origins Floor Mounted Bath Shower Mixer Tap

Vado Individual Origins IND-ORI233A-BLK Details

Vado Individual Origins Floor Mounted Bath Shower Mixer Tap.

Available in 4 finishes: Brushed Black, Brushed Gold, Brushed Nickel, Brushed Bronze
Round shape tap with single lever
Floor-mounted installation
Supplied with shower kit
2 x 1/2 inch female threaded connections
Suitable for high working pressure
Minimum water pressure recommended for smooth working is 1.0 bar and maximum of 5.0 bar
Size [mm]: 186mm x 310mm x 1107mm [Width x Depth x Height]
Size [cm]: 18.6cm x 31cm x 110.7cm [Width x Depth x Height]
The centre of the inlet to the centre of the outlet: 240mm (24cm)
Installation tolerances: Clearance 950mm from floor to spout
Download the Installation Instruction and User Guide PDF File from the Additional Info Section
Refer to the technical diagram for the complete technical dimensions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Individual Origins
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Brushed Black
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Spout Reach
: 240

⤷ Width
: 186
⤷ Max. Deck Thickness
: 52
⤷ Inlet Connections
: 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Stick
⤷ Height
: 1106
⤷ No. of Tap Holes
: 1
⤷ Barcode
: 5052120281802

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the User Guide Pdf File

Vado Individual Origins Floor Mounted Bath Shower Mixer Tap

£726.00

RRP: ~~£1225.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.
