Nuie Rene Aluminium Framed Quadrant Shower Enclosure with Handle-SMQ9E1-E6

Nuie Rene SMQ9E1-E6 Details

Nuie Rene 900 x 900mm Single Entry Quadrant Shower Enclosure.

Key Features

✔Quick-release wheels for easy cleaning
✔Patented Easyfit profile assembly system
✔Manufactured using 6mm(0.6cm) toughened safety glass
✔Lifetime guarantee from Nuie against manufacturing defects

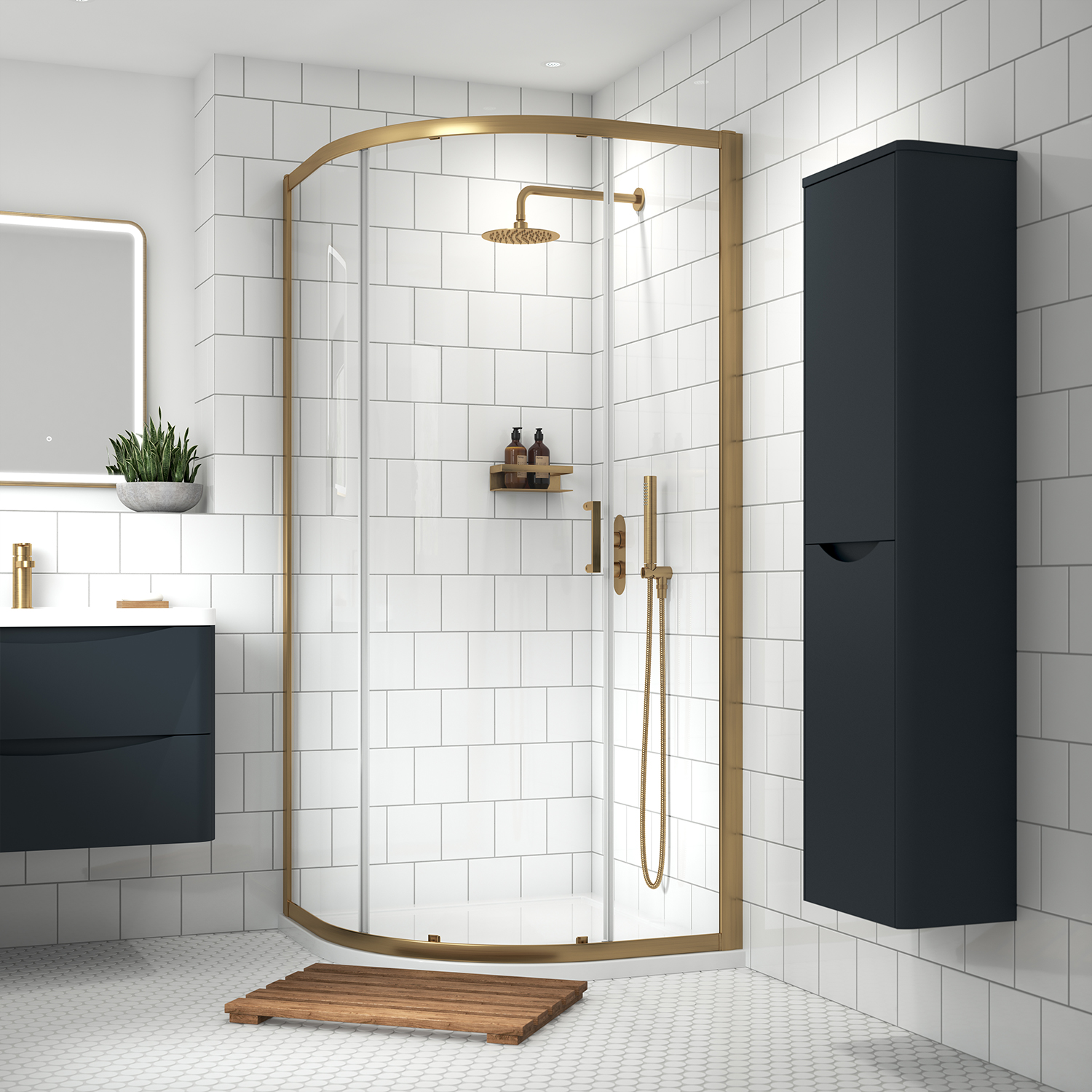

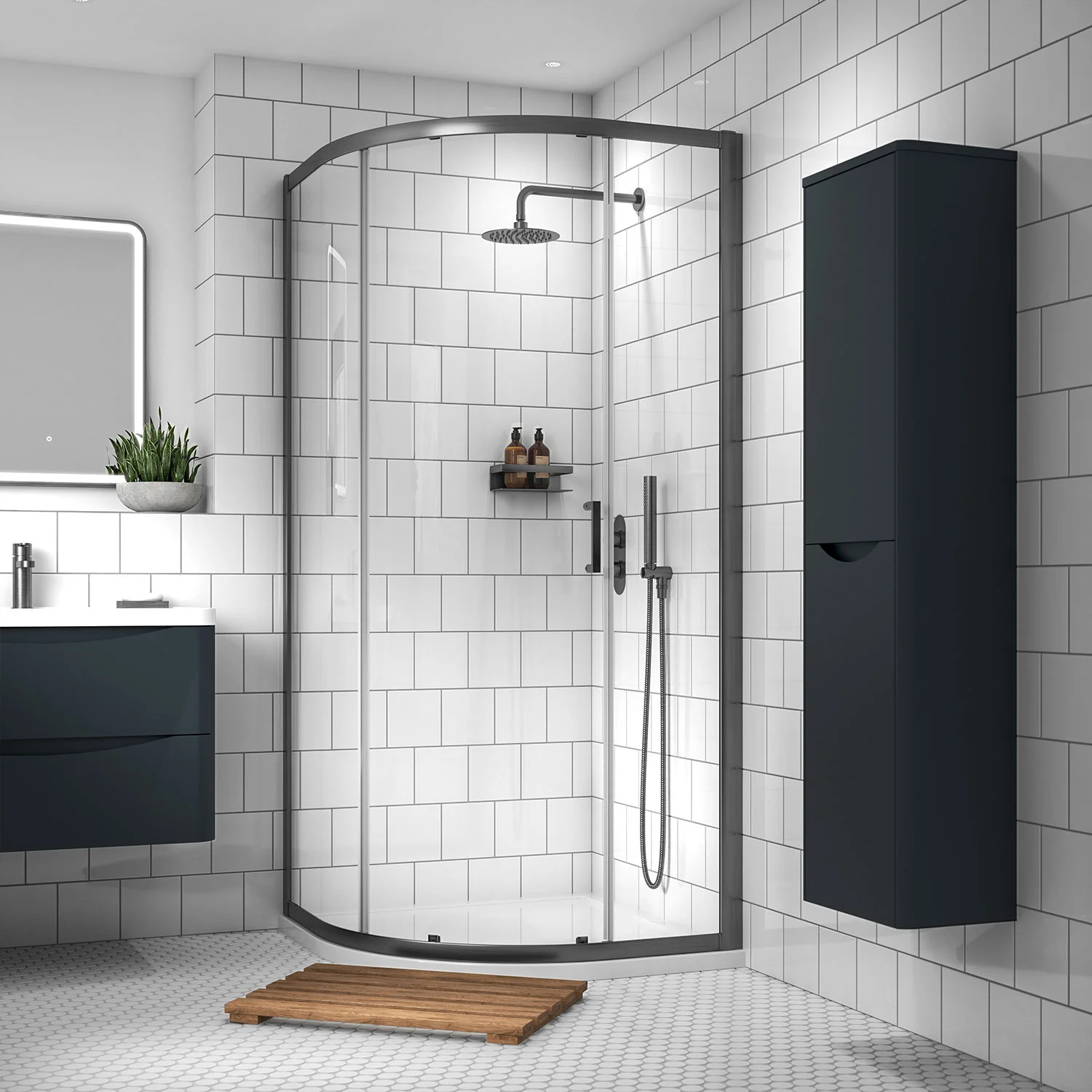

✔Available in different finishes: Polished chrome, matt black and brushed brass [Optional]

Reversible design - The door can be left, or Right-hand opening
Profile material: Aluminium
Sliding doors for easy access
Supplied with a square T-bar handle
Handle material: ABS
Size [mm]: 880mm x 880mm x 1900mm [Width x Depth x Height]
Size [cm]: 88cm x 88cm x 190cm [Width x Depth x Height]
Opening Entry Width: 490mm (49cm)
Adjustment: 875-895mm (87.5cm - 89.5cm)
Radius: 538mm (53.8)
Easy to fit
Fixings Included
Enclosure design: Framed
Adjustment approximately 20mm (2cm) out of true
Enclosure design: Framed
Shower tray, Leg set, +20mm extension kit [Optional]
Compatible waste [Optional]
Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
Please refer to the technical image for complete details
The tray and brassware shown in the image are not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Rene
⤷ Coating
: Without Coating
⤷ Weight in kg
: 41.2
⤷ Warranty/Guarantee
: Lifetime
⤷ Installation Type
: Corner
⤷ Radius
: 538
⤷ Handle Style
: T-Bar
⤷ Waste Included
: Sold Separately
⤷ Width
: 880
⤷ Depth
: 880
⤷ Configuration
: Door Only
⤷ Height
: 1900
⤷ Fixings included
: Yes
⤷ Barcode
: 5056678441466

⤷ Door Type
: Sliding
⤷ Frame Design
: Framed
⤷ Frame / Profile Finish
: Polished Chrome
⤷ Frame Material
: Aluminium
⤷ Glass Type
: Toughened safety glass
⤷ Glass Thickness
: 6
⤷ Number Of Doors
: 1
⤷ Entry Width
: 490
⤷ Closing / Opening Mechanism
: Quick Release Rollers
⤷ Tray Included
: Sold Separately
⤷ Handle Included
: Yes
⤷ Tray Compatible
: Yes
⤷ Door Opening
: Reversible

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Fitting Instruction Pdf File

Technical Images

Nuie Rene Aluminium Framed Quadrant Shower Enclosure with Square T-Bar Handle - 900 x 900mm

Add-Ons

Shower Tray

Sleek, strong, easy to fit Pearlstone shower trays from Lauren. The image is for illustration purpose only.

No Option Selected
OP-59399 - 860 x 860mm For Single Entry Quadrant + £99.26

Easy Plumb And Legset

Supplied with plinth, legs, clips and screws, this leg set kit allows raised installation of quadrant and Offset quadrant shower tray. Please Note: Image is for illustration purpose only.

No Option Selected
OP-208467 - Leg Set And Plinth For 700-900mm Trays + £44.48

£181.20

RRP: ~~£492.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Quick Release Rollers

Some shower door runners have a quick-release mechanism on the runners for fast release of the doors or panels for easy cleaning of the enclosure.

Reversible Door

A reversible door can be fit to open either to the right or left, depending on the dimensions of your space.

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.
