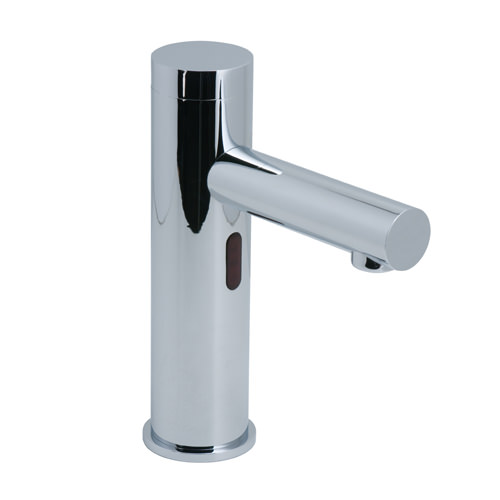

Vado I-Tech Zoo Infra-Red Deck Mounted Chrome Mono Basin Mixer Tap

Vado Itech IR-100/ZOO-C/P Details

The tubular spout over a tubular base in this mixer makes a profound impact. Carved showcasing delicate design language from high quality material and finished in chrome, this sleek, shiny, lavish I-Tech Zoo Infra-Red Mono Basin Mixer Tap comes to you from Tap experts Vado. It can be proudly mounted at the deck and is operated on mains or batteries. Smooth flow of water starts once placed hands in front of the sensor. Easy installation, this basin mixer tap is guaranteed for five years by Vado.

The manufacturing code of this product is - IR-100/ZOO-C/P
It comes in a chrome finish
Deck mounted installation
Comes with rub clean aerator
Mains or battery operated
It takes standard AA batteries
Central processing unit: IR-100/CONTROL
Size [mm]: Ø57mm x 205mm [Width x Height]
Size [cm]: Ø5.7cm x 20.5cm [Width x Height]
Centre of the inlet to centre of the outlet 120mm (12cm)
Requires minimum 1.0 bar operating pressure
Suitable for high water pressure system
WRAS approved

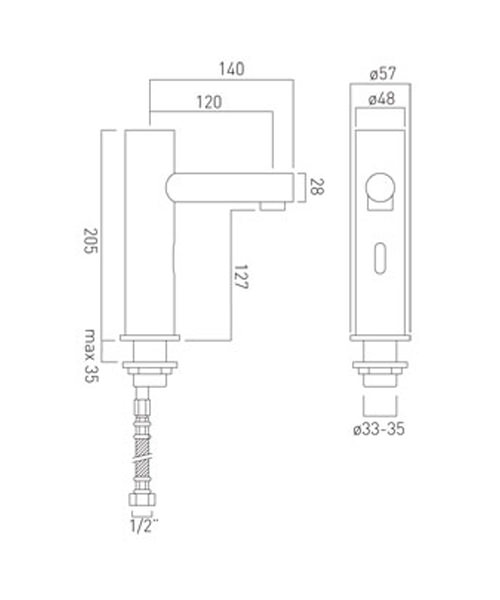

Refer to the technical image for more dimensional details
Download the Installation Instruction PDF File from the Additional Info Section
Carry five years guarantee against any manufacturing defects

Info / Size (mm)

Tap
Pipe Centre: 120 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Motion Sensor
⤷ Tap Body Shape
: Round
⤷ Range
: Zoo
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Installation Type
: Deck Mounted
⤷ Base To Spout
: 127
⤷ Spout Reach
: 140

⤷ Width
: 57
⤷ Inlet Connections
: 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Flow Rates (l/min)
: 3 bar at 13 l/m
⤷ Sensor Type
: Infrared
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 5052120110379
⤷ Product Type
: Sensor Basin Tap

Additional Info & Downloads

Download the Installation / Maintenance Instructions Pdf File

Add-Ons

Protherm In-Line Thermostatic Valve

Minimum 0.2 bar water pressure. The flow rate at 3 bar pressure is 31 l/min. WRAS and TMV3 approved. Supplied with 15mm compression fittings. Features thermostatic ceramic cartridge

No Option Selected
OP-133339 - Protherm In-Line Thermostatic Valve RECOMMENDED
+ £92.33

Vado I-Tech Zoo Infra-Red Deck Mounted Chrome Mono Basin Mixer Tap

£384.30

RRP: ~~£630.00~~

STOCK AVAILABLITY: 3 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Mains-Operated

Mains-operated devices work on electricity by plugging into electrical wall sockets. These require higher electrical energy and can't be operated using batteries as small batteries can't power the device. Large, non-portable electrical appliances are typically mains operated.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Battery Operated

Battery-operated devices are smaller and have the advantage of portability. Once the power has run out, battery-powered devices need recharging or replacement.

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

sean Asked :
Hi, I wondered if it is possible to increase the time my IR taps give water, as the taps stop as soon as your hand moves away from the sensor. Many Thanks Sean

Answered By QS Team

You cannot increase the duration of the flow in this way. The taps are designed to only operate whilst the infra-red beam is broken, i.e. when hands are beneath the spout.

Was this answer helpful?

lisa Asked :
Please, can you let me know how to change the battery on this tap? Thanks!

Answered By QS Team

Hi Lisa, Underneath the tap, there should be a control box which holds the battery. You will need to unscrew the cover to the unit to get to the battery.

Was this answer helpful?
