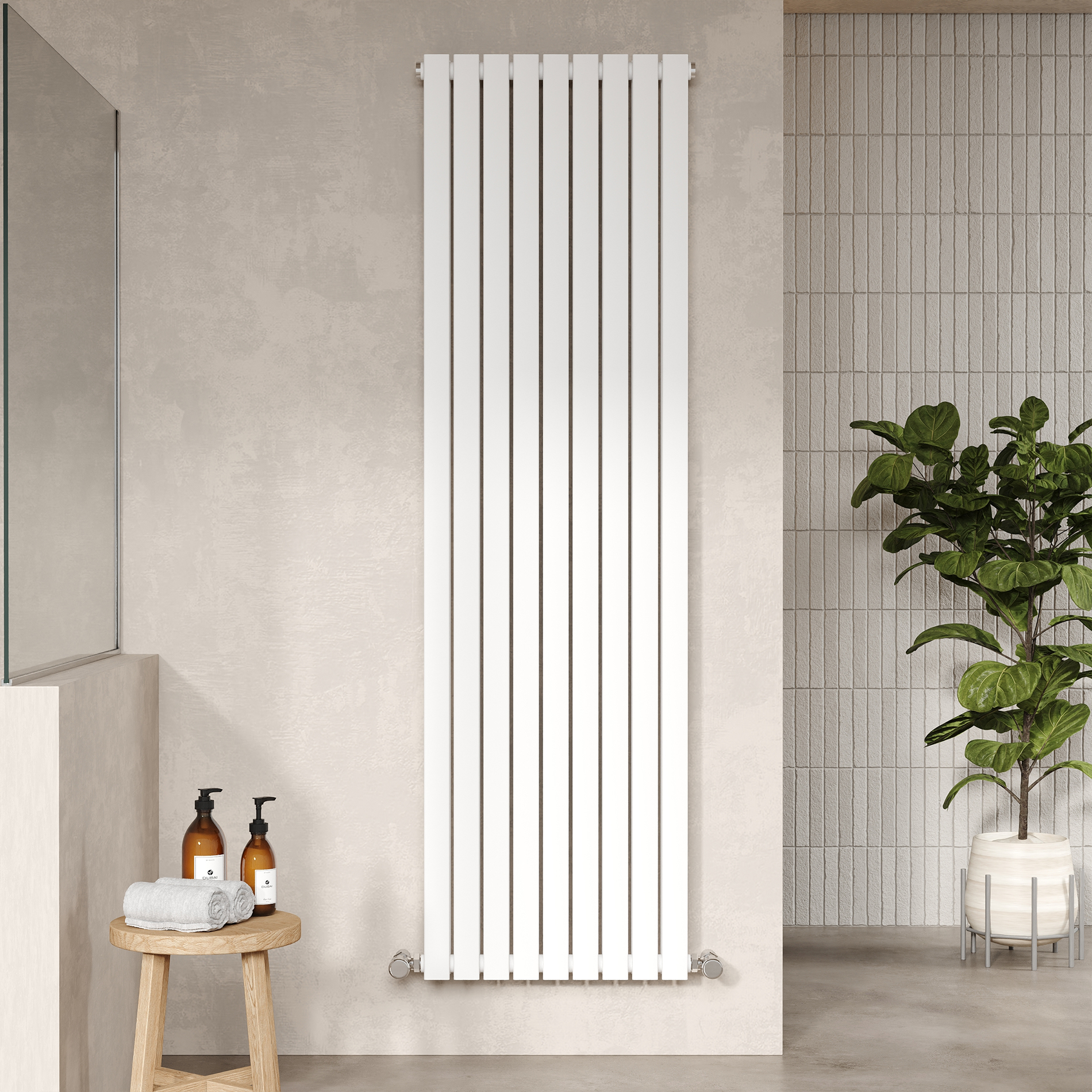

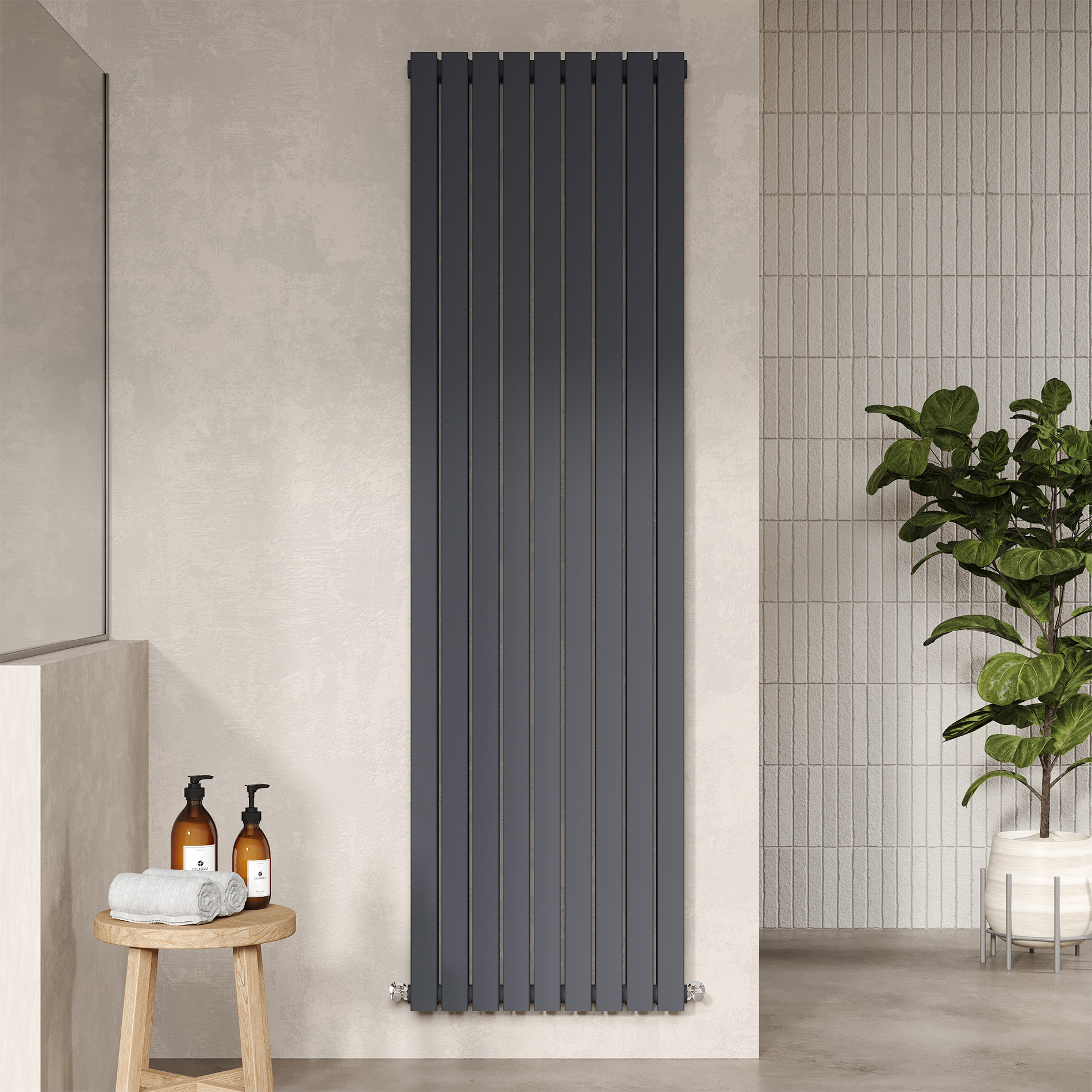

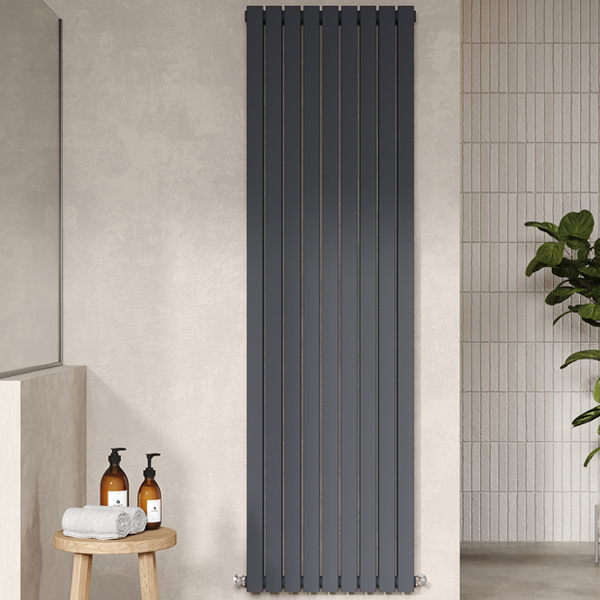

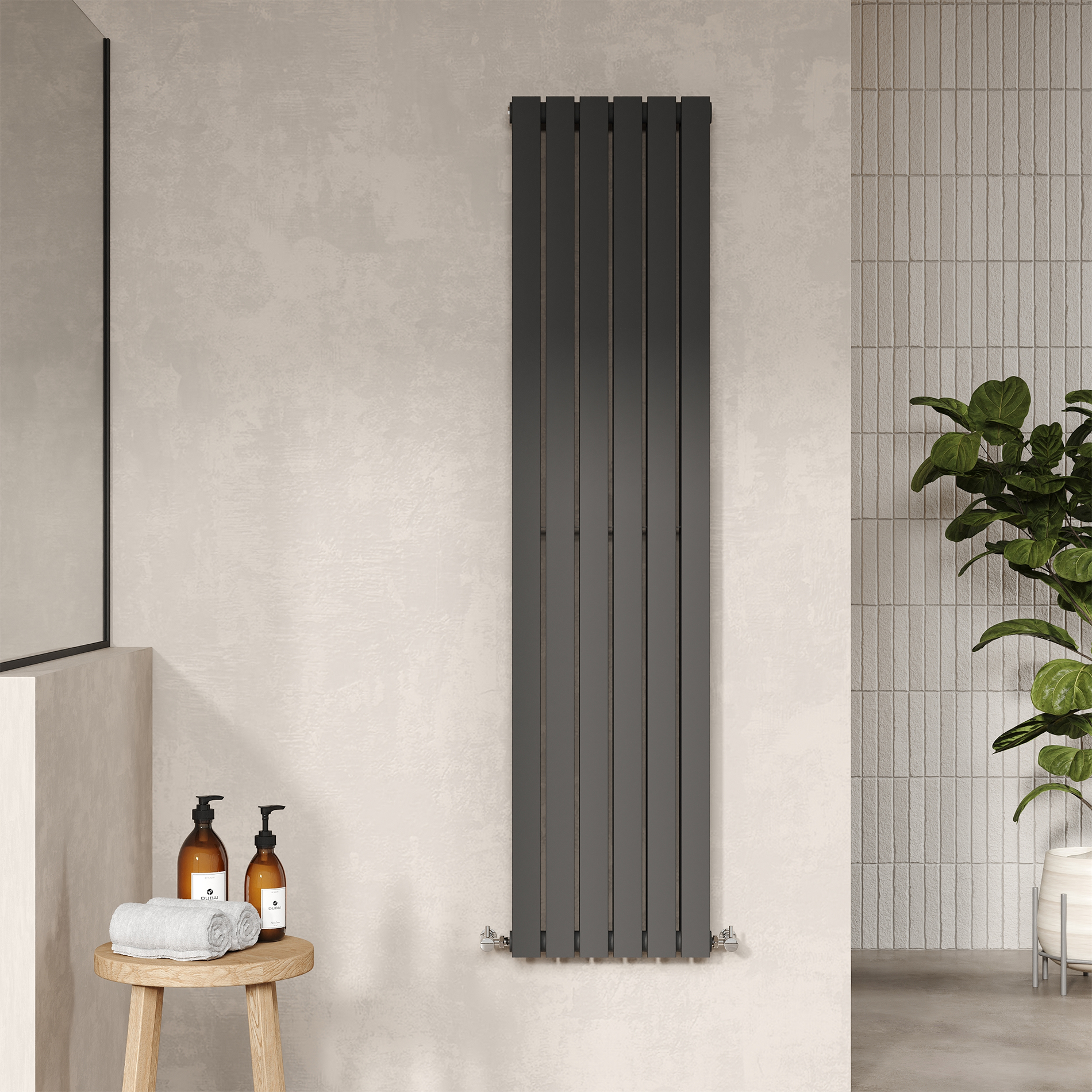

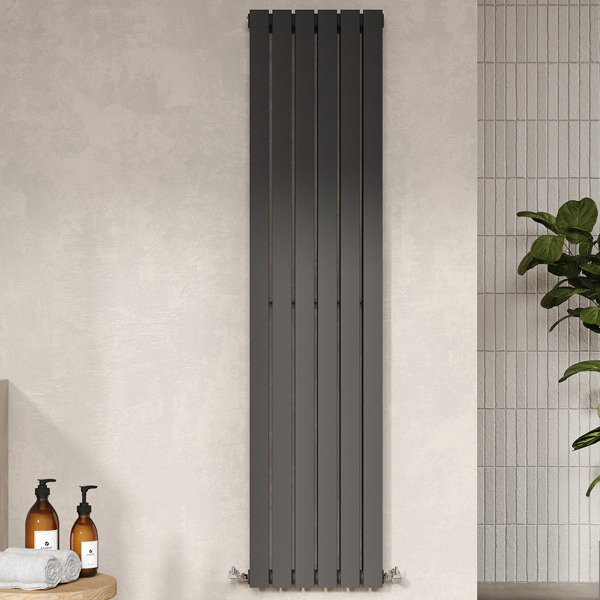

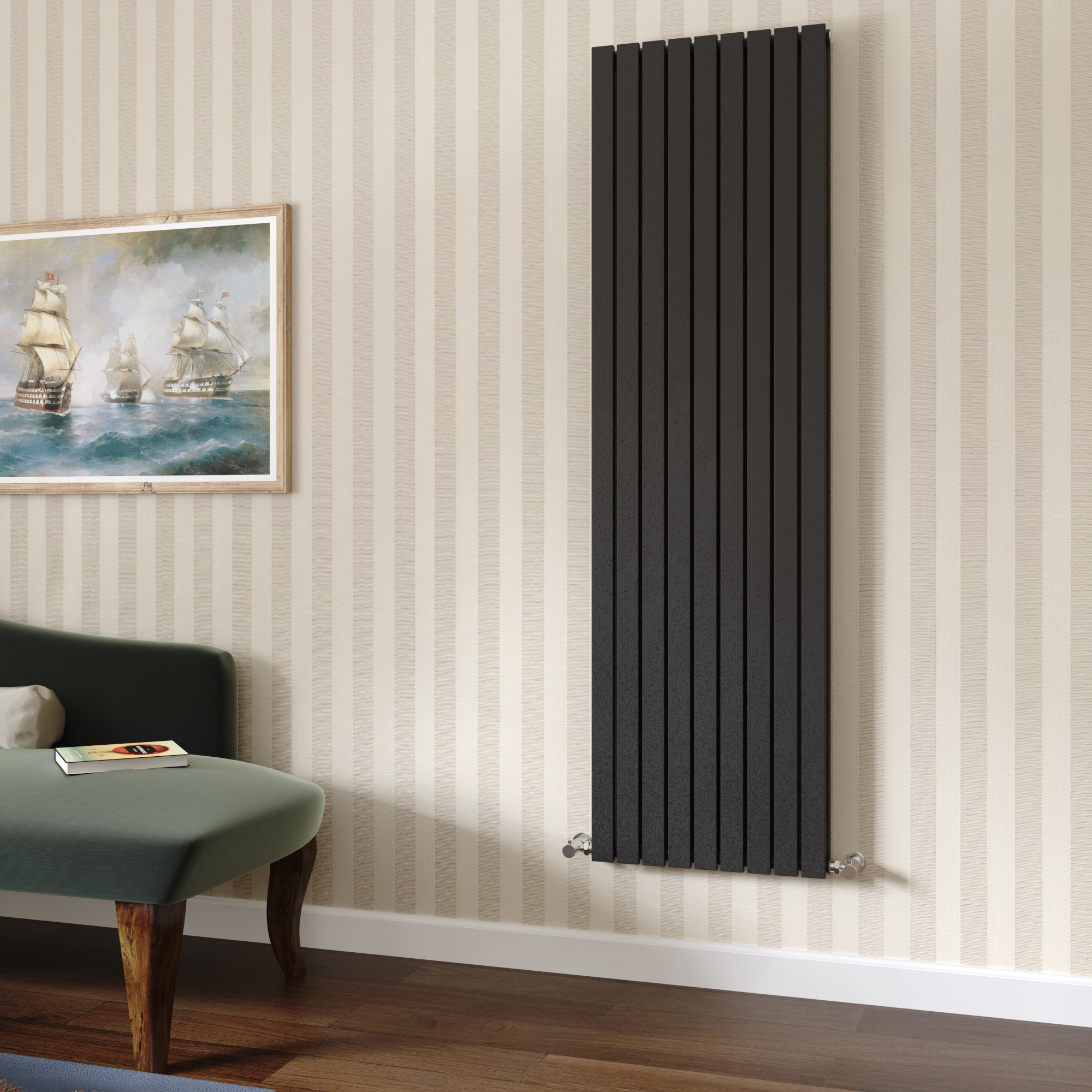

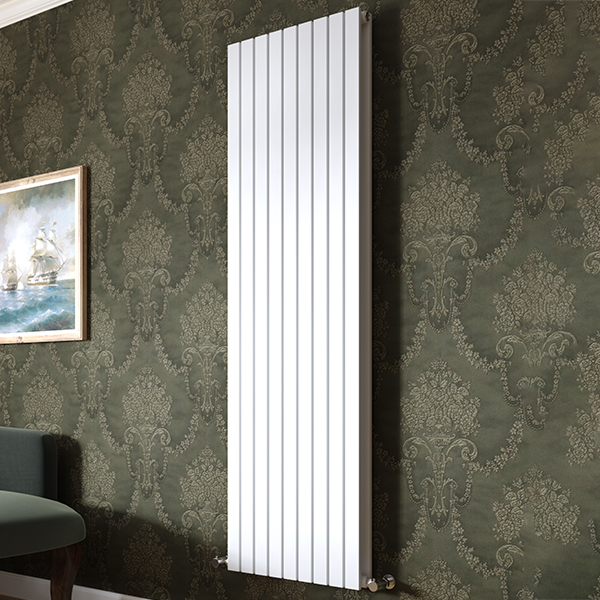

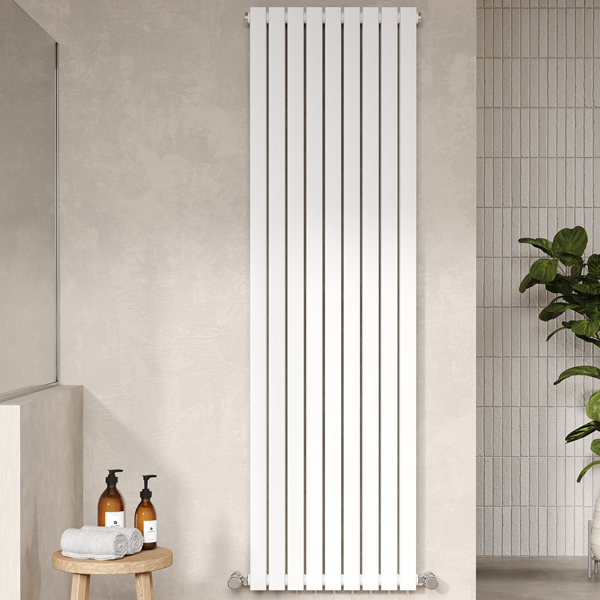

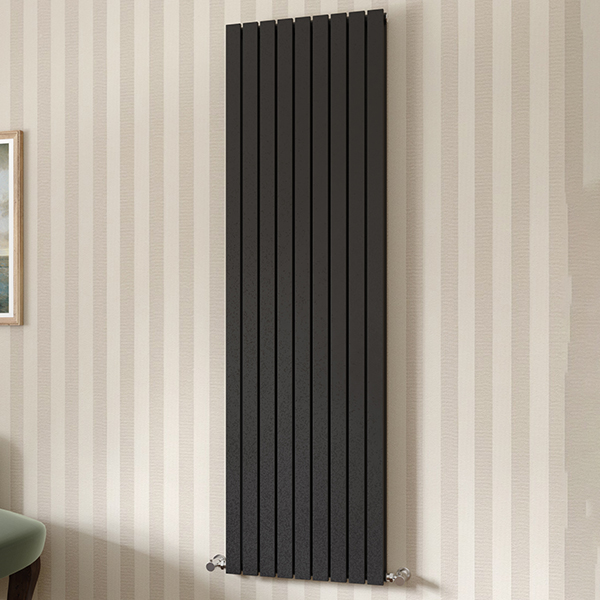

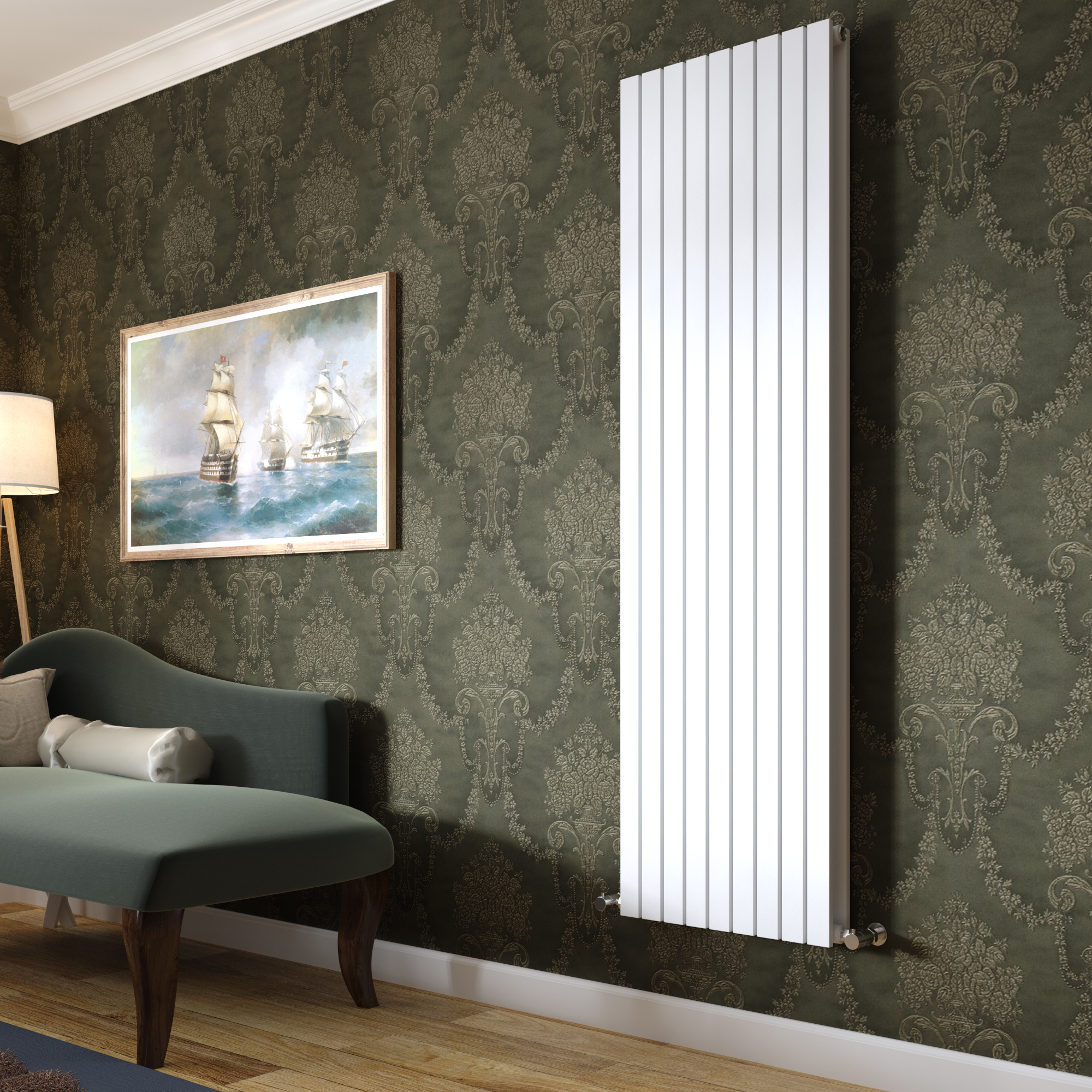

Hudson Reed Sloane Double Panel Vertical Radiator

Hudson Reed Sloane HLW43 Details

Hudson Reed Sloane Double Panel Vertical Radiator works as a practical heating solution with an equally prominent design. The vertical panels placed together carve out a stunning design that is equally attractive. The double panel unit has a vertical orientation and heats effortlessly, providing delicate warmth. It is manufactured from superior quality steel, plated to perfection to stunning anthracite or white finish, delivering what it promises, that too at a great price.

Key Features

✔Manufactured using steel material
✔Ultra-modern radiator with squared-off edges
✔Supplied with fixing screws
✔Fully Certified BS EN 442-1:2014
✔Twenty years guarantee from Hudson Reed against manufacturing defects

Available in different widths: 354mm and 528mm - [Optional]
Available in different heights: 1500mm and 1800mm - [Optional]
Comes in different finishes: White and Anthracite - [Optional]
Double Panel Radiator
Depth: 79mm (7.9cm)
Suitable for wall-mounted installation
Pipe centre for valves: 444mm (44.4cm)
Wall to Centre of Tapping: 85mm (8.5cm)
Come complete with fixing screws
Type of Heat: Water
No. of Heat setting: 1
Number of Sections/Panels: 12
After installing new radiators, a suitable inhibitor will be used when refilling the system
All tapping are 1/2inch British Standard Pipe
Suitable valve available in Compatible Valves tab below - [Optional]
Towel rail and Robe hook - [Optional]
Refer to the technical image for detailed technical dimensions
Download the Installation Instruction and Data Sheet PDF File from the Additional Info Section
Valves shown in the image are not included - sold separately

Note: It is recommends that the pipework should not be done until the heated towel rail is receipt. After installing any new radiators, when refilling the system, it is recommended that a suitable inhibitor is used. Dimensions are subject to minor deviations.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Sloane
⤷ Colour
: White
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 354
⤷ Projection (Depth)
: 79
⤷ Height
: 1500

⤷ Orientation
: Vertical
⤷ Barcode
: 5055146192190
⤷ BTU Output
: 30°C - 1608 | 50°C - 3105 | 60°C - 3934
⤷ Watts
: 30°C - 471 | 50°C - 910 | 60°C - 1151
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 85
⤷ Panel Configuration
: Double

Additional Info & Downloads

Download the Radiator Installation Instruction Pdf File Download the DataSheet For Sloane Radiator Pdf File

Technical Images

Hudson Reed Sloane Double Panel Vertical Radiator

Add-Ons

Radiator Accessories

Hudson Reed provides strong and durable accessories for its radiator. Please Note Image shown is for illustration purpose only.

OP-101782 - Magnetic Robe Hook + £27.19
OP-101783 - Radiator Hook + £17.77
OP-101785 - Robe Hook for Radiator + £12.13
OP-101784 - Magnetic Towel Rail + £63.34
OP-101786 - Towel Rail for Radiator + £43.38

£150.86

RRP: ~~£432.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Other Sizes / Finishes

Other Sizes / Finishes / Variations Available.

QS Code	Finish	Size / Difference	MFC Code
QS-V17319	-	Single Panel	HLW41

Back to QS-V90418 / MFC Code: HLW43

Product Variations Info & MFC Code

WIDTH	HEIGHT	FINISH	MFC CODE	RAL NO.	BTU /WATTS @30 DEG.C	BTU /WATTS @50 DEG.C	BTU /WATTS @60 DEG.C	PROJECTION FROM WALL
354mm	1500mm	Satin White	HLW43	9016	1608 / 471	3105 / 910	3934 / 1151	110mm
354mm	1500mm	Anthracite	HLA73	9016	1608 / 471	3105 / 910	3934 / 1153	110mm
354mm	1800mm	Satin White	HLW44	9003	1860 / 545	3641 / 1067	4613 / 1355	97mm
354mm	1800mm	Anthracite	HLA74	7016	2075 / 608	3873 / 1135	4907 / 1417	-
528mm	1800mm	Satin White	HLW47D	7016	3133 / 912	5810 / 1703	7361 / 2158	110mm
528mm	1800mm	Anthracite	HLA47D	7016	3133 / 912	5810 / 1703	7361 / 2158	110mm

2 Features Included In This Product Explained

RAL Colours

It refers to a European colour-matching system which defines colours for coatings, paints, and plastics. The colour standard is administrated by the RAL Deutsches Institut für Gütesicherung und Kennzeichnung.
Read more...

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.
