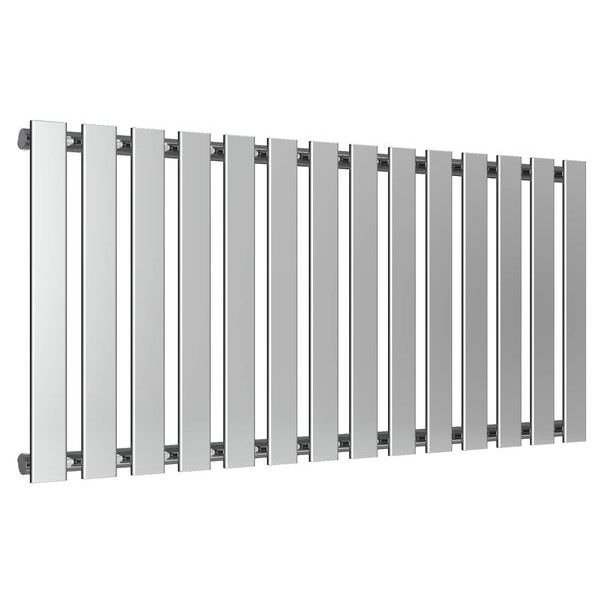

Reina Pienza 550mm High Chrome Designer Radiator

Reina Pienza RND-PNZ485 Details

Bring a spark of class to your space with this designer radiator by Reina. The Pienza adds a contemporary look to an artificial heating source that substitutes the traditional fireplace. Straight lines are sometimes more attractive than curves, as seen with the latest radiator from Reina. Built using superior quality mild steel in attractive vertical lines, this reasonably priced heating appliance can be an absolute steal.

With its modern look, this appliance can create the perfect atmosphere when placed in your living room. This horizontal radiator is smartly built to keep power consumption at a minimum. It comes secured with a 5-years guarantee from the manufacturer.

Key Features

✔Manufactured using steel material
✔Supplied with Air vent and End plug
✔Brackets for radiator included
✔Five years guarantee from Rena against manufacturing defects

Available in different widths: 485mm, 655mm, 825mm, 995mm and 1165mm - [Optional]
Available variants: Central heating, Dual Fuel and Electric - [Optional]
Heating element type: Standard, On/Off Touch, LST Mini Round Thermostatic, Mini Round, Touch Thermostatic, LST Weekly Thermostatic and Weekly Thermostatic - [Optional]
It comes in a chrome finish
Height: 550mm (55cm)
Wall to pipe centres: 61mm-76mm (6.1cm-7.6cm)
Distance from wall: 105mm-120mm (10.5cm-12cm)
Valves, Sleeving kit and chrome pipe kit - [Optional]
For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
For Electric models, Optional Liquid Filling is required with the heating element
For more details, please refer to the Product Variations Info and MFC Code table given below
EN 442 compliant product
For BTU and Watts, Please refer to the Product Variations Info and MFC Code section
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the technical diagram for complete technical dimensions
The valves and chrome pipes shown in the image are not included

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Pienza
⤷ Colour
: Chrome
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Installation Type
: Wall Mount
⤷ Width
: 485
⤷ Height
: 550
⤷ Fixings included
: Yes

⤷ Orientation
: Vertical
⤷ Barcode
: 5057199124371
⤷ BTU Output
: 1341
⤷ Watts
: 393
⤷ Tapping / Pipe Centres
: 485
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Dual Fuel | Electric
⤷ Wall to Centre of Inlet
: 61-76
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the Technical Darwing Pdf File

Technical Images

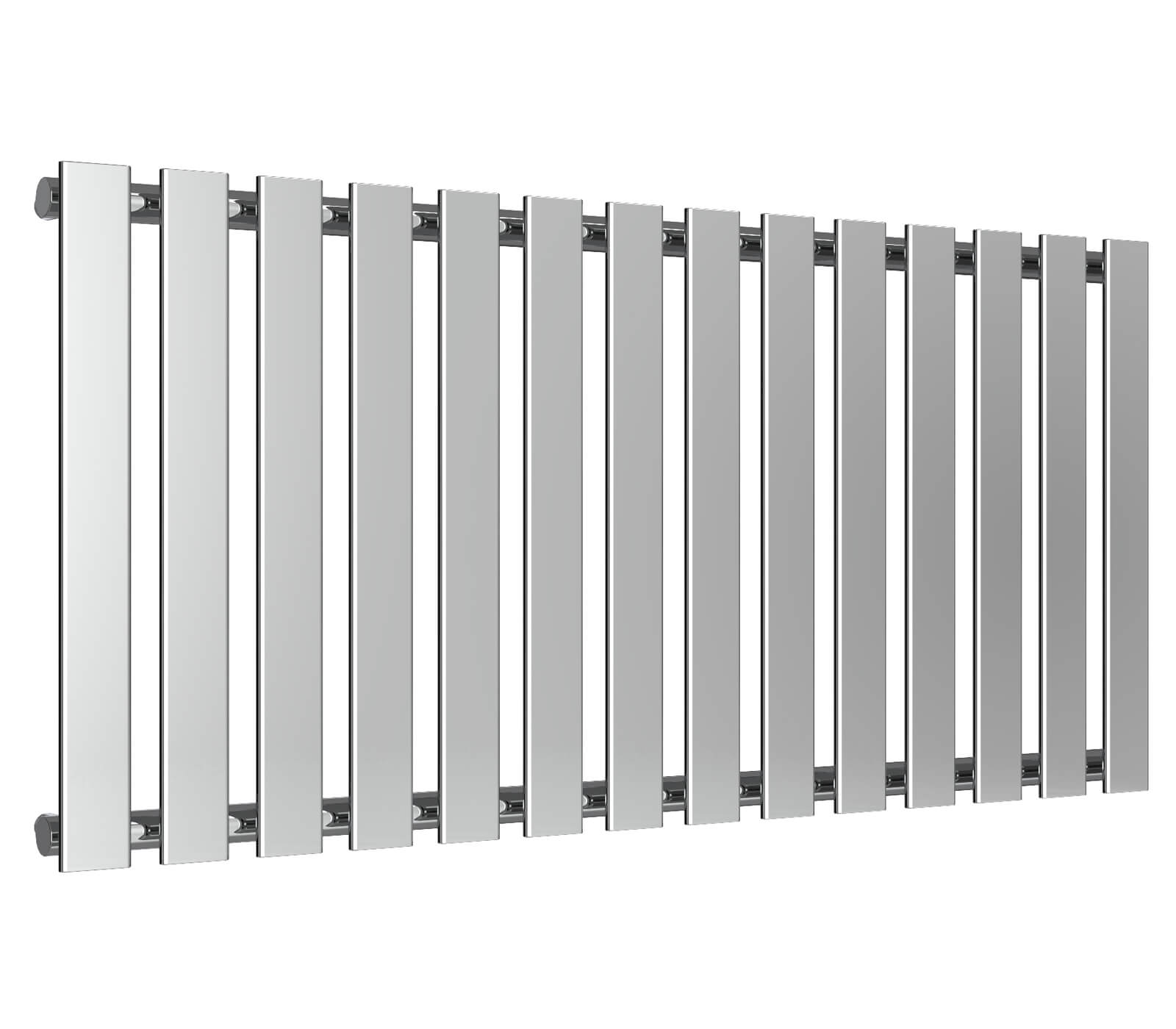

Reina Pienza 550mm High Chrome Designer Radiator

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £16.40

£247.12

RRP: ~~£398.57~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Width	485mm	655mm	825mm	995mm	1165mm
Pipe Centres	485mm	655mm	825mm	995mm	1165mm
Wall To Pipe Centre	61-76mm	61-76mm	61-76mm	61-76mm	61-76mm
Wall Distance	105-120mm	105-120mm	105-120mm	105-120mm	105-120mm
Tube Quantity	6	8	10	12	14
Watts - Delta-70	393	525	656	787	918
BTU - Delta-70	1341	1789	2237	2683	3131
BTU - Delta-60	1099	1466	1834	2199	2566
BTU - Delta-50	865	1154	1443	1731	2020
BTU - Delta-45	753	1005	1257	1507	1759
BTU - Delta-40	651	868	1086	1302	1520
BTU - Delta-35	545	727	909	1091	1273
BTU - Delta-30	443	590	738	885	1033
BTU - Delta-25	172	230	288	345	402
MFC	RND-PNZ485	RND-PNZ655	RND-PNZ825	RND-PNZ995	RND-PNZ1165

3 Features Included In This Product Explained

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
