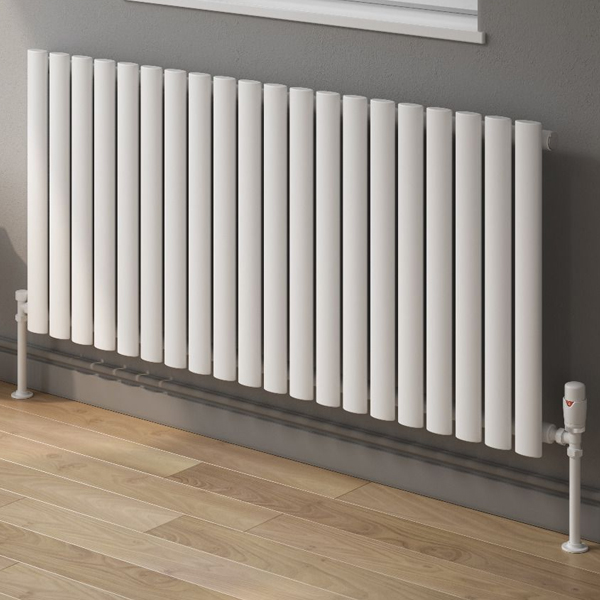

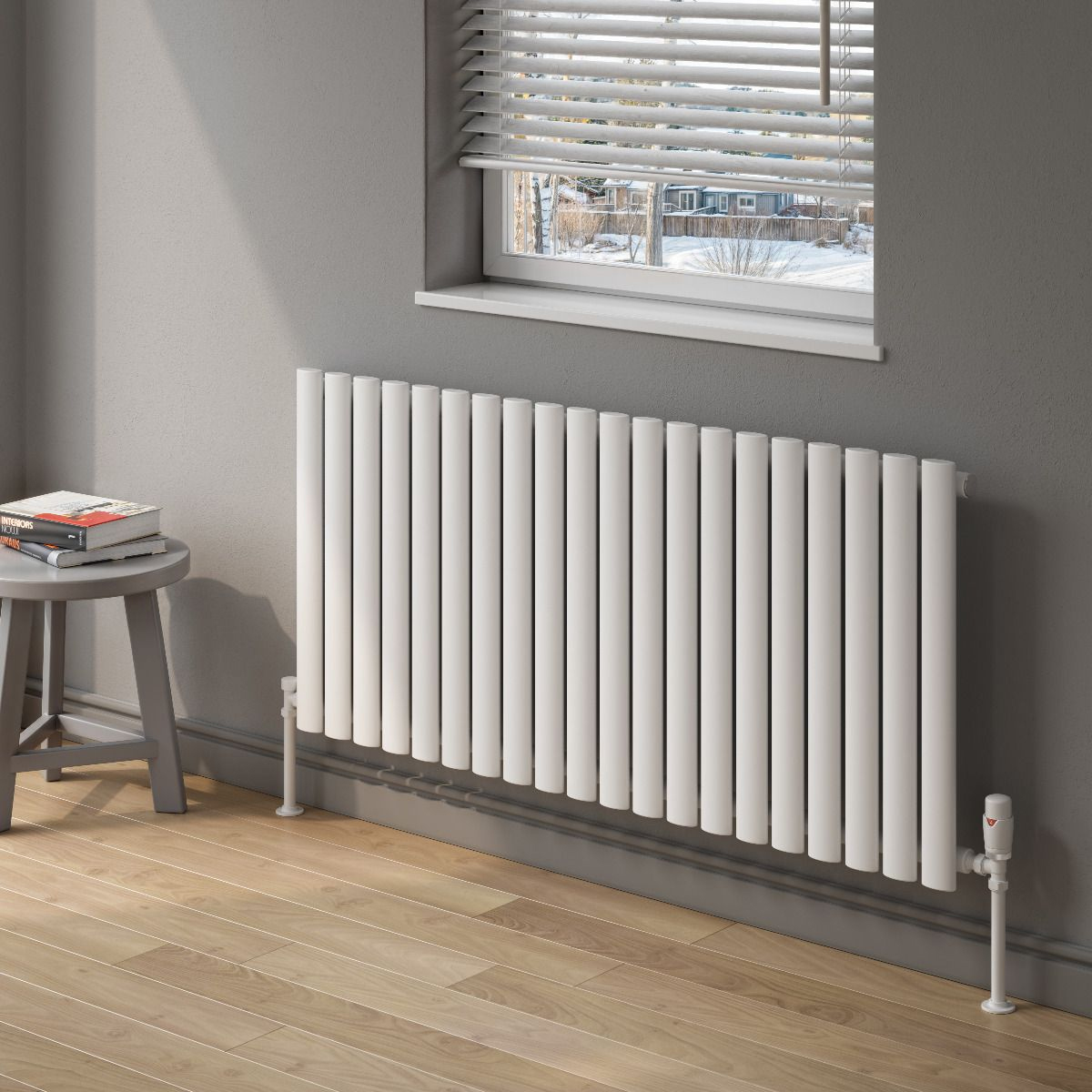

Reina Neva 550mm High Single Panel Horizontal Designer Radiator

Reina Neva RND-HNV7 Details

With the Neva Single Panel Designer Radiator, the emphasis is on functionality more than style. The minimalist design, reminiscent of a picket fence, has clean vertical lines but with a horizontal inclination. Made from only the finest quality steel, the robustness of this fixture can be gauged from its sturdy appearance on the outside, inspiring much confidence in its ability to last long.

The radiator can be customised to suit your preferences with exciting finishes. This wall-mounted radiator is supplied with brackets and is easy to install, requiring little or no effort. It radiates enough heat to warm up the entire room within minutes. What we like about this appliance is that its pleasing to the eye. Kill the chill with this heater, whose longevity can be improved by following the care instructions.

Key Features

✔Manufactured using steel material
✔Supplied with air vent and end plug
✔Five-year guarantee from Reina against manufacturing defects
✔Choice of different finishes: White, Anthracite and Chrome - [Optional]

Available widths: 413mm, 590mm, 826mm, 1003mm, 1180mm and 1416mm [Optional]
Variants available: Central heating, Dual Fuel and Electric - [Optional]
Heating element type: Standard, On/Off Touch, LST Mini Round Thermostatic, Mini Round, Touch Thermostatic, LST Weekly Thermostatic and Weekly Thermostatic - [Optional]
Height: 550mm (55cm)
Single-panel horizontal designer radiator
Brackets for radiator included
EN 442 Compliant Product
Valves, sleeving kit and chrome pipe kit [Optional]
For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
For Electric models, Optional Liquid Filling is required with the heating element
The image shown is for illustration purposes only
For BTU and Watts, Please Refer to the Chart in Product Variations Info and MFC Code section
Refer to the technical diagram for complete technical dimensions
Download the Installation Instruction and Heating Element PDF Files from the Additional Info Section
The valves shown in the image are not included

Please Note: The appropriate wattage of the element (if selected) will be decided by the manufacturer, once the order is placed.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Neva
⤷ Colour
: White
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Installation Type
: Wall Mounted
⤷ Width
: 413
⤷ Height
: 550
⤷ Fixings included
: Yes
⤷ Orientation
: Horizontal

⤷ Barcode
: 5057199125316
⤷ BTU Output
: 1447
⤷ Watts
: 424
⤷ Tapping / Pipe Centres
: 413
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Dual Fuel | Electric
⤷ Wall to Centre of Inlet
: 65
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic
⤷ Panel Configuration
: Single

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the Heating Element Manual Instructions Pdf File Download the Details Of Heating Elements Pdf File

Technical Images

Reina Neva 550mm High Single Panel Horizontal Designer Radiator

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £16.40

£106.91

RRP: ~~£172.44~~

IN-STOCK

Delivery in 2 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Width	413mm	590mm	826mm	1003mm	1180mm	1416mm
Tube Quantity	7	10	14	17	20	24
Pipe Centres	413mm	590mm	826mm	1003mm	1180mm	1416mm
Wall To Pipe Centres	65mm	65mm	65mm	65mm	65mm	65mm
Wall Distance	103mm	103mm	103mm	103mm	103mm	103mm
Watts - Delta-70	424	606	852	1030	1211	1454
BTU - Delta-70	1447	2066	2907	3512	4131	4957
BTU - Delta-60	1186	1693	2383	2879	3386	4063
BTU - Delta-50	934	1333	1875	2266	2665	3198
BTU - Delta-45	813	1161	1633	1973	2321	2785
BTU - Delta-40	702	1003	1411	1705	2005	2406
BTU - Delta-35	588	840	1182	1428	1679	2015
BTU - Delta-30	478	682	959	1159	1363	1636
BTU - Delta-25	186	266	374	451	531	637
MFC	RND-HNV7	RND-HNV10	RND-HNV14	RND-HNV17	RND-HNV20	RND-HNV24

Width	413mm	590mm	826mm	1003mm	1180mm	1416mm
Tube Quantity	7	10	14	17	20	24
Pipe Centres	413mm	590mm	826mm	1003mm	1180mm	1416mm
Wall To Pipe Centres	65mm	65mm	65mm	65mm	65mm	65mm
Wall Distance	103mm	103mm	103mm	103mm	103mm	103mm
Watts - Delta-70	424	606	852	1030	1211	1454
BTU - Delta-70	1447	2066	2907	3512	4131	4957
BTU - Delta-60	1186	1693	2383	2879	3386	4063
BTU - Delta-50	934	1333	1875	2266	2665	3198
BTU - Delta-45	813	1161	1633	1973	2321	2785
BTU - Delta-40	702	1003	1411	1705	2005	2406
BTU - Delta-35	588	840	1182	1428	1679	2015
BTU - Delta-30	478	682	959	1159	1363	1636
BTU - Delta-25	186	266	374	451	531	637
MFC	RND-HNV7A	RND-HNV10A	RND-HNV14A	RND-HNV17A	RND-HNV20A	RND-HNV24A

Width	413mm	590mm	826mm	1003mm	1180mm
Tube Quantity	7	10	14	17	20
Pipe Centres	413mm	590mm	826mm	1003mm	1180mm
Wall To Pipe Centres	47mm	47mm	47mm	47mm	47mm
Wall Distance	88mm	88mm	88mm	88mm	88mm
Watts - Delta-70	424	606	852	1030	1211
BTU - Delta-70	1447	2066	2907	3512	4131
BTU - Delta-60	1186	1693	2383	2879	3386
BTU - Delta-50	934	1333	1875	2266	2665
BTU - Delta-45	813	1161	1633	1973	2321
BTU - Delta-40	702	1003	1411	1705	2005
BTU - Delta-35	588	840	1182	1428	1679
BTU - Delta-30	478	682	959	1159	1363
BTU - Delta-25	186	266	374	451	531
MFC	RND-HNV7C	RND-HNV10C	RND-HNV14C	RND-HNV17C	RND-HNV20C

3 Features Included In This Product Explained

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
