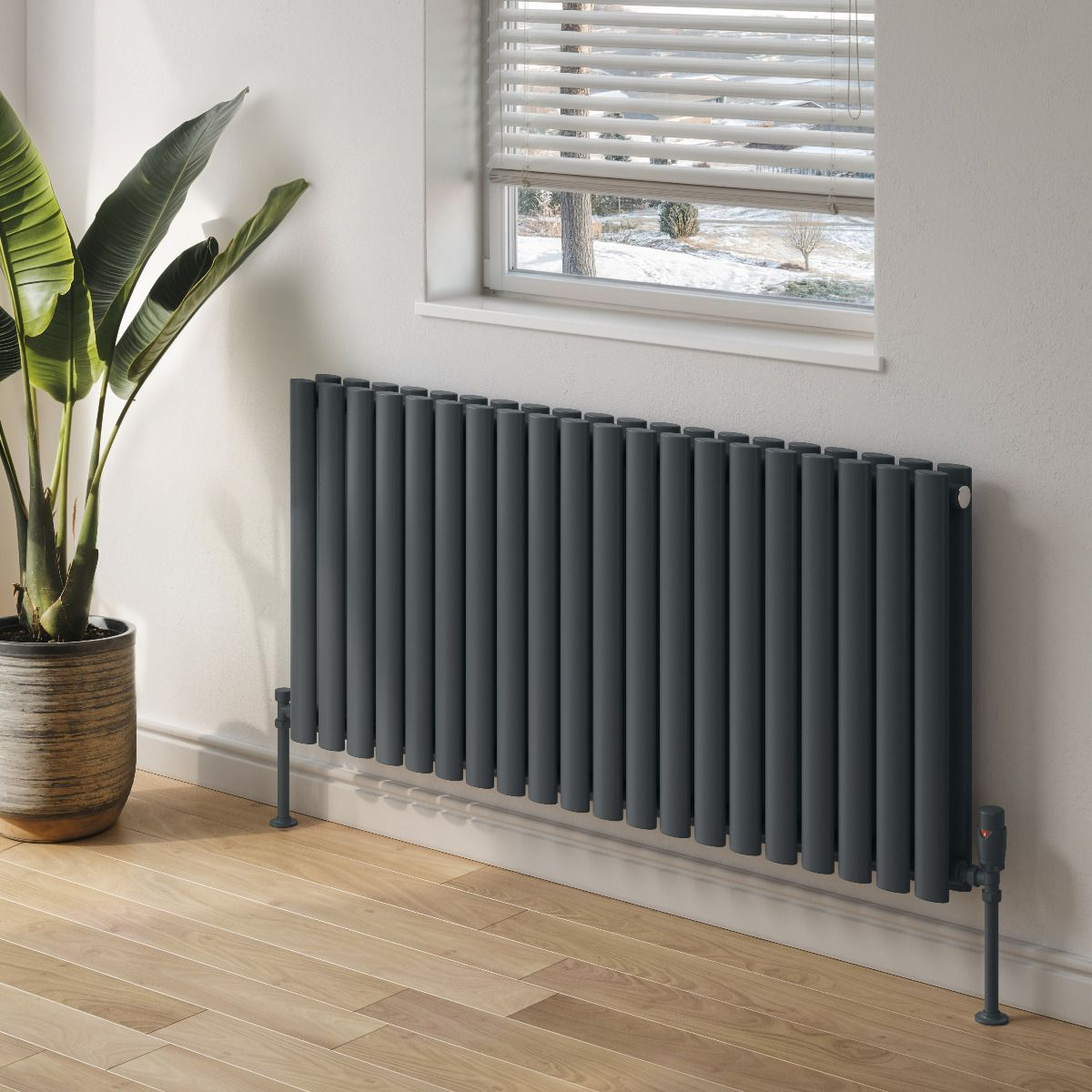

Reina Neva 550mm High Double Panel Horizontal Designer Radiator

Reina Neva RND-HNV7D Details

Radiators have long ceased to be merely heating appliances; they are now considered for their ornamental value and functional aspect. The Reina Neva Double Panel Designer Radiator is furnished with these qualities and more; a quick read-through of its features will convince you of its ability to be a good investment. This modern-styled piece generates twice the amount of heat due to it being double-panelled and having more surface area to emit heat. Suitable for all heating systems.

This appliance is not limited by the type of system prevalent in your home. Durability is one thing you needn't worry about. Constructed from superior quality mild steel, it will offer an efficient service for many years. Mild Steel gives it all the qualities of Steel, such as heat retention and durability minus the weight. So, it stays heated longer, keeping spaces toasty much after you turn off the central heating.

Key Features

✔Manufactured using steel material
✔Supplied with air vent and end plug
✔Five-year guarantee from Reina against manufacturing defects
✔Choice of different finishes: White and Anthracite - [Optional]

Available widths: 413mm, 590mm, 826mm, 1003mm, 1180mm and 1416mm - [Optional]
Available variants: Central heating, Dual fuel and Electric - [Optional]
Heating element type: Heating element type: Standard, On/Off Touch, LST Mini Round Thermostatic, Mini Round, Touch Thermostatic, LST Weekly Thermostatic and Weekly Thermostatic - [Optional]
Double panel horizontal designer radiator
Height: 550mm (55cm)
Wall to pipe centres: 65mm (6.5cm)
Distance from wall: 103mm (10.3cm)
EN 442 Compliant product
For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece
For Electric models, Optional Liquid Filling is required with the heating element
For BTU and Watts, Please refer to the Product Variations Info and MFC Code section
Valves, sleeving kit and chrome pipe kit [Optional]
Refer to the technical diagram for complete technical dimensions
Download the Heating Element PDF Files from the Additional Info section
The valves shown in the image are not included

Please Note: The appropriate wattage of the element (if selected) will be decided by the manufacturer, once the order is placed.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Neva
⤷ Colour
: White
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted | Floor Mounted
⤷ Width
: 413
⤷ Projection (Depth)
: 103

⤷ Height
: 550
⤷ Orientation
: Horizontal
⤷ Barcode
: 5057199125514
⤷ BTU Output
: 70°C - 2315
⤷ Watts
: 70°C - 679
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Electric | Dual Fuel
⤷ Wall to Centre of Inlet
: 65
⤷ Panel Configuration
: Double

Additional Info & Downloads

Download the Heating Element Manual Instructions Pdf File Download the Details Of Heating Elements Pdf File

Technical Images

Reina Neva 550mm High Double Panel Horizontal Designer Radiator

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £16.40

£136.69

RRP: ~~£220.47~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Width	Finish	Tube Qty	Pipe Centres	Wall To Pipe Centres	Wall Distance	Watts - Delta-70	BTU - Delta-70	BTU - Delta-60	BTU - Delta-50	BTU - Delta-45	BTU - Delta-40	BTU - Delta-35	BTU - Delta-30	BTU - Delta-25
413mm	White	14	413mm	65mm	103mm	679	2315	1898	1494	1301	1124	941	764	298
590mm	White	20	590mm	65mm	103mm	969	3306	2710	2133	1857	1605	1344	1091	425
826mm	White	28	826mm	65mm	103mm	1364	4651	3812	3001	2613	2258	1891	1535	598
1003mm	White	34	1003mm	65mm	103mm	1648	5619	4606	3625	3157	2728	2284	1855	722
1180mm	White	40	1180mm	65mm	103mm	1938	6610	5418	4264	3713	3209	2687	2181	850
1416mm	White	48	1416mm	65mm	103mm	2326	7931	6501	5117	4456	3850	3224	2618	1019
-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
413mm	Anthracite	14	413mm	65mm	103mm	679	2315	1898	1494	1301	1124	941	764	298
590mm	Anthracite	20	590mm	65mm	103mm	969	3306	2710	2133	1857	1605	1344	1091	425
826mm	Anthracite	28	826mm	65mm	103mm	1364	4651	3812	3001	2613	2258	1891	1535	598
1003mm	Anthracite	34	1003mm	65mm	103mm	1648	5619	4606	3625	3157	2728	2284	1855	722
1180mm	Anthracite	40	1180mm	65mm	103mm	1938	6610	5418	4264	3713	3209	2687	2181	850
1416mm	Anthracite	48	1416mm	65mm	103mm	2326	7931	6501	5117	4456	3850	3224	2618	1019

4 Features Included In This Product Explained

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.

Reviews & Ratings

By: Ruby From : London Overall Rating: Date: June 30, 2019 Good One

This radiator caught my eye for its subtle looks. Glad I purchased it, too. It’s really good, and I'm happy with it. Had to return the first one that was sent due to some issues. It was promptly replaced. The current one that I’m using now is perfect. Pretty efficient and practical. I like it all the more for its sleek horizontal design. It gives a good output of heat. No complaints, a happy customer.

Helpful?

Quality:

Style

Value for Money

By: Sandra From : WARMINSTER Overall Rating: Date: May 4, 2017 fantastic

What a belter. The best

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Sharon Asked :
Reina Neva RND-HNV7D 500x1416 What is the BTU output? Does it use angle valves? Do you offer RAL paint colours?

Answered By QS Team

BTU and Watts's details are available in Product Variations Info & MFC Code Section in the product. Regarding Valves, You have to select as per the Pipe fittings. All compatible valves are available as optional in Compatible Valve Tab.
