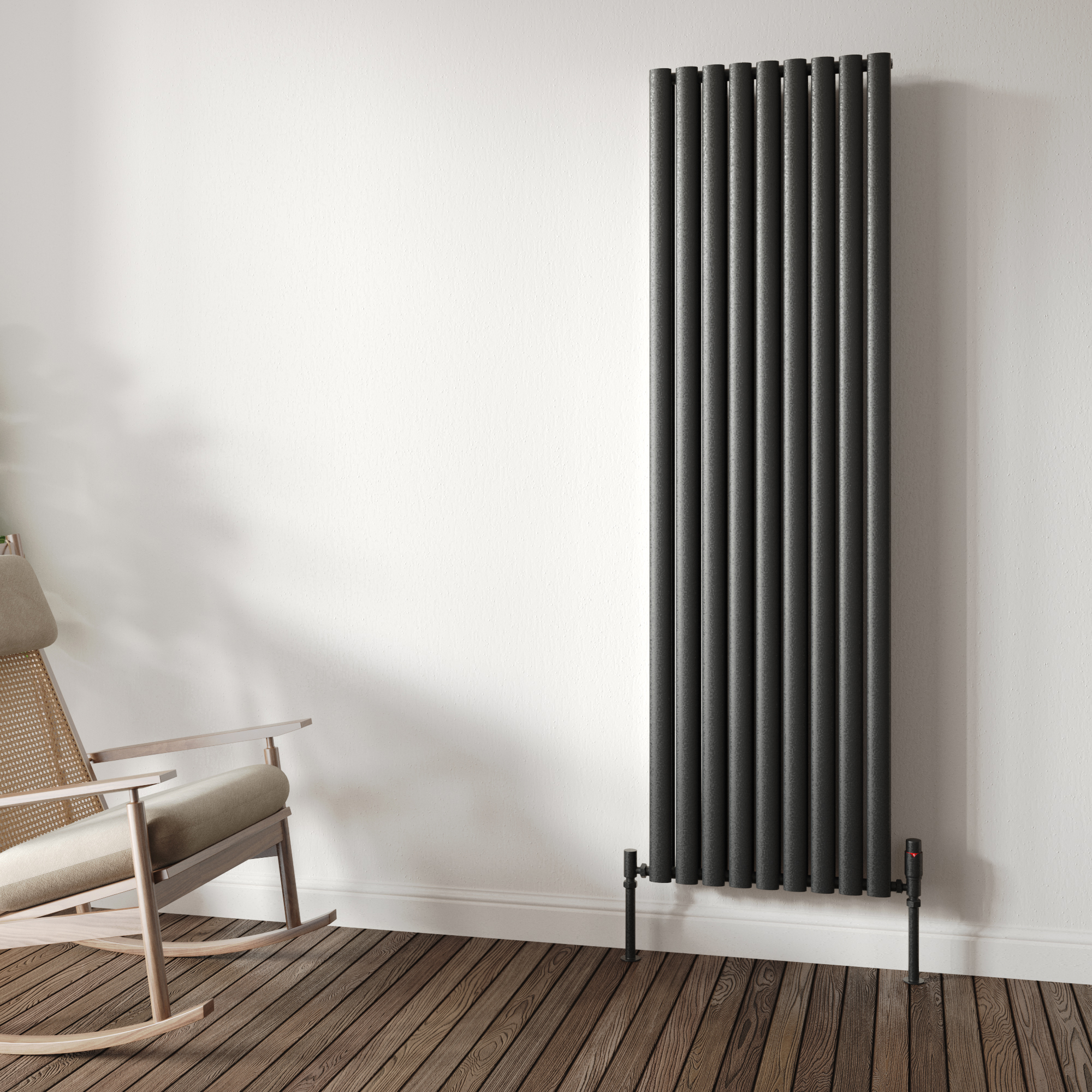

Reina Neva Double Panel Vertical Designer Radiator

Reina Neva RND-NV2315WD Details

The Neva Double Panel Radiator from Reina underscores the designs effortless simplicity and fine elegance. Made from superior quality steel, this vertical appliance with a charcoal anthracite finish is a must-have for your home. It can bring comfort and warmth to your room with an ample amount of heat it generates. This equipment comes supplied with brackets necessary to wall-mount it. It is built to function under central heating systems. Suitable to use with all types of radiator valve. Hailed as one of the best, this Reina radiator is a highly functional fixture with finish choices and a designer look.

Key Features

✔Manufactured using steel material
✔Supplied with air vent and end plug
✔Five-year guarantee from Reina against manufacturing defects
✔Choice of different finishes: White and Anthracite - [Optional]

Available in different widths: 236mm, 295mm, 354mm, 413mm, 472mm and 531mm - [Optional]
Available in different heights: 1500mm and 1800mm - [Optional]
Double panel vertical designer radiator
Wall to pipe centres: 65mm (6.5cm)
Distance from wall: 103mm (10.3cm)
Suitable for central heating systems only
Brackets for radiator included
For BTU and Watts, Please refer to the Product Variations Info and MFC Code section
EN 442 Compliant product
Valves, sleeving kit and chrome pipe kit - [Optional]
Refer to the technical diagram for complete technical dimensions
The valves shown in the image are not included

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Neva
⤷ Colour
: White
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Steel
⤷ Installation Type
: Wall Mounted
⤷ Width
: 236
⤷ Height
: 1500
⤷ Fixings included
: Yes
⤷ Orientation
: Vertical

⤷ Barcode
: 5057199125767
⤷ BTU Output
: 3420
⤷ Watts
: 1003
⤷ Tapping / Pipe Centres
: 236
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 65
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic
⤷ Panel Configuration
: Double

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £16.40

Reina Neva Double Panel Vertical Designer Radiator - White and Anthracite

£165.47

RRP: ~~£266.88~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

Product Variations Info & MFC Code

Width	236mm	295mm	354mm	413mm	472mm	531mm
Tube Qty	8	10	12	14	16	18
Pipe Centres	236mm	295mm	354mm	413mm	472mm	531mm
Wall To Pipe Centres	65mm	65mm	65mm	65mm	65mm	65mm
Wall Distance	103mm	103mm	103mm	103mm	103mm	103mm
Watts - Delta-70	1003	1247	1497	1746	1996	2245
BTU - Delta-70	3420	4252	5104	5955	6807	7656
BTU - Delta-60	2803	3485	4183	4882	5580	6275
BTU - Delta-50	2207	2743	3293	3842	4392	4939
BTU - Delta-45	1921	2389	2867	3346	3824	4301
BTU - Delta-40	1660	2064	2478	2891	3304	3716
BTU - Delta-35	1390	1729	2075	2421	2767	3112
BTU - Delta-30	1129	1403	1684	1965	2247	2527
BTU - Delta-25	440	547	656	765	875	984
White MFC	RND-NV2315WD	RND-NV2915WD	RND-NV3515WD	RND-NV4115WD	RND-NV4715WD	RND-NV5315WD
Anthracite MFC	RND-NV2315AD	RND-NV2915AD	RND-NV3515AD	RND-NV4115AD	RND-NV4715AD	RND-NV5315AD

Width	236mm	295mm	354mm	413mm	472mm	531mm
Tube Qty	8	10	12	14	16	18
Pipe Centres	236mm	295mm	354mm	413mm	472mm	531mm
Wall To Pipe Centres	65mm	65mm	65mm	65mm	65mm	65mm
Wall Distance	103mm	103mm	103mm	103mm	103mm	103mm
Watts - Delta-70	1203	1497	1796	2095	2395	2694
BTU - Delta-70	4103	5104	6123	7145	8166	9187
BTU - Delta-60	3363	4183	5019	5857	6694	7530
BTU - Delta-50	2647	3293	3950	4610	5268	5927
BTU - Delta-45	2305	2867	3440	4014	4588	5161
BTU - Delta-40	1992	2478	2972	3469	3964	4460
BTU - Delta-35	1668	2075	2489	2905	3320	3735
BTU - Delta-30	1354	1684	2021	2358	2695	3032
BTU - Delta-25	527	656	787	918	1050	1181
White MFC	RND-NV2318WD	RND-NV2918WD	RND-NV3518WD	RND-NV4118WD	RND-NV4718WD	RND-NV5318WD
Anthracite MFC	RND-NV2318AD	RND-NV2918AD	RND-NV3518AD	RND-NV4118AD	RND-NV4718AD	RND-NV5318AD

4 Features Included In This Product Explained

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.

Double Panel Radiators

Also known as type 22 radiators, these double panel radiators are constructed using two steel panels and two convectors or sets of fins which emit greater heat output. Its heat output is more than a single panel and will heat up the room much faster. This kind is ideal for larger than average spaces.
