Heritage Dawlish Pair Of Basin Pillar Taps

Finishes: Chrome, Vintage Gold, Brushed Nickel

£72.44

RRP: £123.00

STOCK AVAILABLITY:

In-Stock In Stock

3.0 out of 5 3.0 out of 5

Based on 1 Ratings.

Shipping: £7.95

Delivery in 4 Working Days Approx.
Select Finish
You've selected: OP-111495 - Chrome
Key Features
  • Available in 3 finishes - Chrome, Vintage Gold, Brushed Nickel
  • Manufactured using top-quality solid brass material
  • Traditional design
  • Suitable for all plumbing systems
  • 10 years of guarantee from the manufacturer against any manufacturing defects
SKU Code: QS-V54871

MFC Code: TDCC00

Heritage Dawlish TDCC00 Details

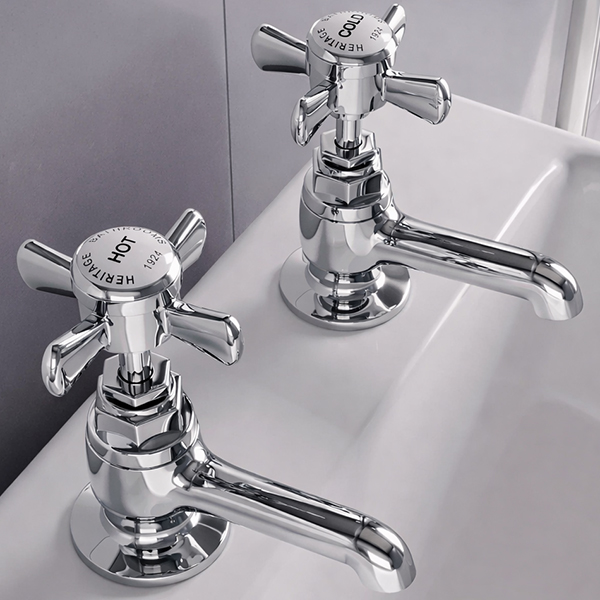

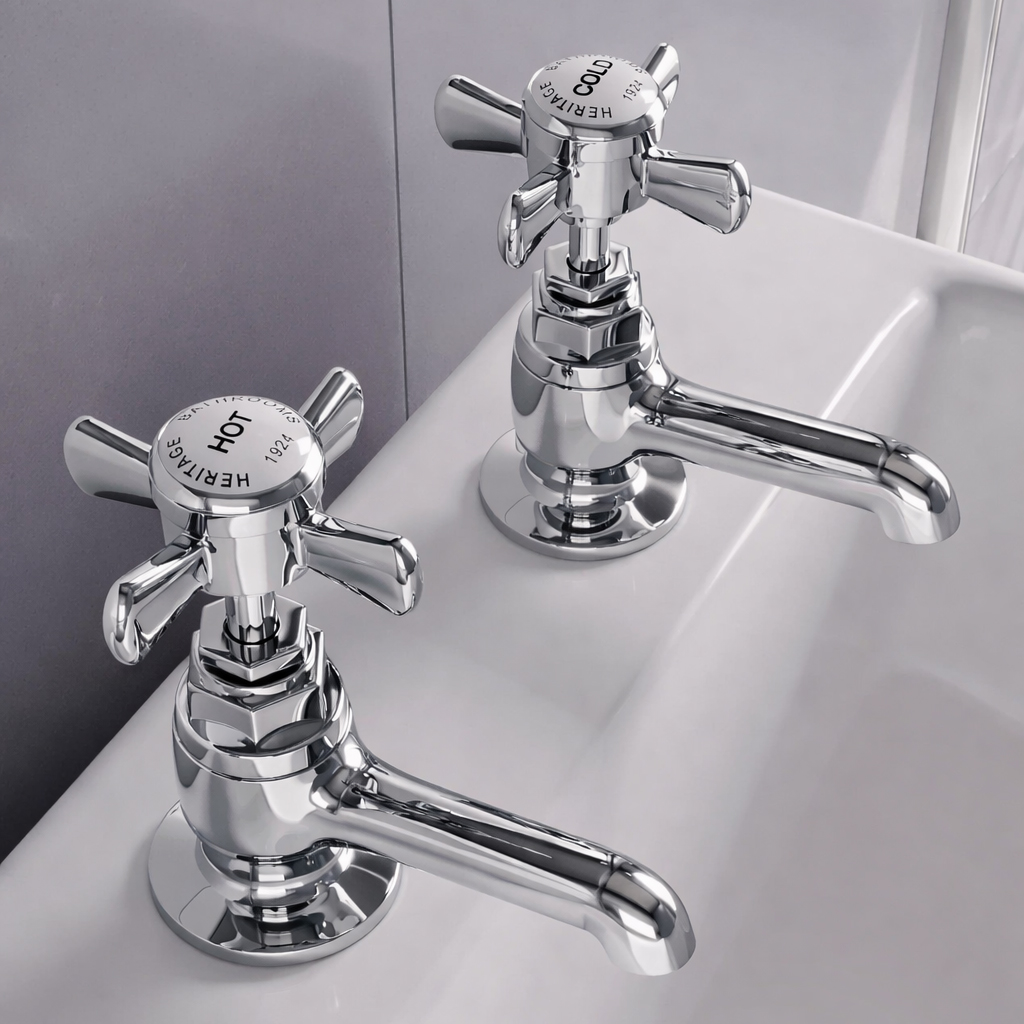

With their crosshead levers and rounded spouts, the Heritage Dawlish Pair of Basin Pillar Taps is the perfect addition to any traditional-styled bathroom. The taps come in a pair and have the plastic nuts needed for installation. The product is made from top-quality brass to stop any rust or corrosion from occurring. Each one has been given a standard, gleaming chrome finish that adds a clean, pristine look to your space but is also available in two other finishes. The taps measure 115 millimetres in height and have a centre of the inlet to centre of outlet measurement of 98 millimetres.

  • Supplied in a pair
  • Deck mounted installation
  • It comes with a crosshead handle
  • Plastic nuts included
  • The base to spout is 25mm [2.5cm]
  • Centre of the inlet to centre of outlet: 92mm [9.2cm]
  • Suitable for low water pressure system
  • Please note that images shown in the product are for illustration purpose only
  • The minimum water pressure required is 0.1 bar, and the maximum water pressure is 5 bar
  • The flow rate of 5.1 l/min at 0.1 bar water pressure
  • Valve/Cartridge Type: Quarter-turn ceramic disc
  • Inlet Connections: 1/2 inch BSP
  • The maximum hot water temperature can be 60 degrees Celsius
  • Download the installation instructions and datasheet PDF from the additional info section
  • Images shown are only for illustration purposes
  • Refer to the technical image for more technical details

Info / Size (mm)

  • Tap
  • Pipe Centre: 98 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Rotating
  • ⤷ Range
  • : Dawlish
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Handle Position
  • : Upward
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 10 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 2
  • ⤷ Spout type
  • : Fixed
  • ⤷ Valve/Cartridge Type
  • : 1/2 inch Quarter Turn Ceramic Disc Valve
  • ⤷ Handle Material
  • : Brass
  • ⤷ Base To Spout
  • : 25
  • ⤷ Spout Reach
  • : 92
  • ⤷ Overall Height
  • : 125
  • ⤷ Width
  • : 60
  • ⤷ Inlet Connections
  • : 1/2 inch BSP
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.1
  • ⤷ Flow Rates (l/min)
  • : 0.1 Bar - 5.1 l/min
  • ⤷ Handle Style
  • : Cross Head
  • ⤷ Barcode
  • : 5055138554265
  • ⤷ Product Type
  • : Traditional Basin Tap

Additional Info & Downloads

Download PDFDownload the Product Data Sheet Pdf File Download PDFDownload the Spares Drawing Pdf File Download PDFDownload the Installation Instruction Pdf File

£72.44
RRP: £123.00
IN-STOCK In Stock Delivery in 4 Working Days Approx.
QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Quarter Turn

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.
