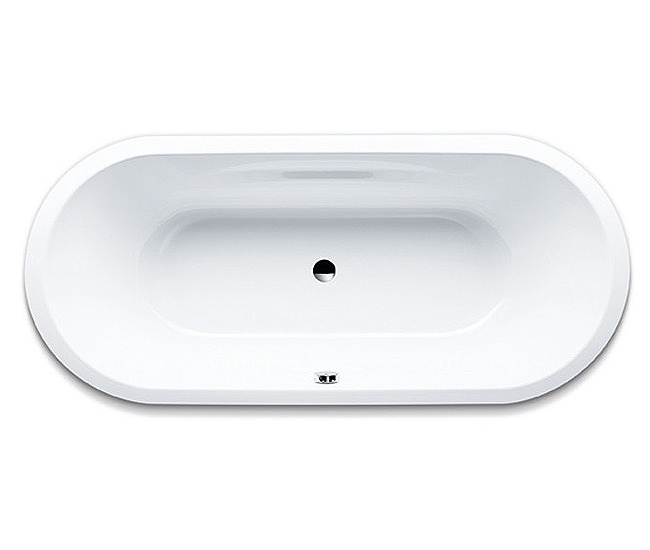

Kaldewei Ambiente Vaio Duo Oval Double Ended Steel Bath White

Kaldewei Vaio 233110110001 Details

The select Kaldewei Vaio Duo 951 Oval Supersteel Bath is a visual delight and comes with an eye-catching white finish. Manufactured from steel enamel, its charming oval shape contains a generous capacity of water to provide you with a deeply relaxing bath. It comes with integrated armrests, two identical backrests and a centrally positioned drain. Scratch proof and abrasion-resistant.

Key Features

✔It comes in a white alpine finish
✔Manufactured using steel enamel
✔Water capacity: 155 litres
✔Design by Phoenix Design
✔Thirty years guarantee from Kaldewei against manufacturing defects.

Bath with or without grip hole [Optional]
Standard coating and EasyClean coating bath available [Optional]
Suitable to use with Anti-Slip and Full Anti-Slip [Optional]
Supplied without tap hole
Size [mm]: 1800mm x 800mm x 430mm [Length x Width x Depth]
Size [cm]: 180cm x 80cm x 43cm [Length x Width x Depth]
Two identical backrest slopes
Centrally positioned drain hole
The oval exterior form and integrated armrests
Weight: 50 kg
70 litres displacement on average
For grip hole bath only - one-sided drilling for grip
Bath waste shown in the image is not included
Bath leg set 5030 [Optional]
Bath waste comfort level [Optional]
The image shown is for illustration purposes only
Refer technical drawing for more details

Please Note: Bath variants may be special order and delivery lead time may vary.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Centered Waste
⤷ Bath Type
: Double-Ended
⤷ Interior Shape
: Oval
⤷ Range
: Vaio Duo
⤷ Coating
: EasyClean - Sold Separately
⤷ External Length
: 1800
⤷ External Width
: 800
⤷ Tub Depth
: Internal - 420 External - 430
⤷ Feets Included
: Sold Separately
⤷ Height Including Feet or Panel
: 550-590
⤷ Front Panel Included
: No
⤷ End Panel Included
: No
⤷ Colour
: White Alpine
⤷ Grips Included
: Sold Separately
⤷ Internal Bottom Length
: 1248
⤷ Internal Bottom Width
: 496
⤷ Internal Top Length
: 1680
⤷ Internal Top Width
: 555 680
⤷ Height of Rim
: 32
⤷ Distance Tub edge to centre of drain hole
: 900

⤷ Distance Top edge to centre of overflow hole
: 70
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 52
⤷ Distance foot end of tub edge to center of foot
: 600
⤷ Distance between the feet
: 600
⤷ Distance tub edge (foot end) to where handle start
: 772
⤷ Distance tub edge (Foot end) to where handle end
: 1028
⤷ Rim Width
: 60
⤷ Weight in kg
: 50
⤷ Slip Resistant
: Sold Separately
⤷ Shape
: Oval
⤷ Capacity in litres
: 155
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 30 Years
⤷ Material
: Steel
⤷ No. of Bathers
: 2
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-Drilled
⤷ Barcode
: 4001112910467

Technical Images

Kaldewei Ambiente Vaio Duo Oval 1800 x 800mm Double Ended Steel Bath White

Add-Ons

Leg Set

Installing a bathtub is particularly quick and straightforward with the all-around bathtub base frame model 5030 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.

No Option Selected
OP-29520 - Leg Set 5030 RECOMMENDED
+ £38.42

Comfort Level And Comfort Level Plus

Comfort-level and comfort-level plus can be used to increase the immersion depth by up to 50 mm – just turn the discreet knob. comfort-level plus knob comes in combination of variable overflow, drain and inlet for filling the bathtub

No Option Selected
OP-211078 - KA 4002 Comfort Level Pop-up Waste + £178.30

£1073.57

RRP: ~~£2025.60~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

10 Features Included In This Product Explained

Heat Resistant

The surface will not show any burn or smoke marks when hot objects are in contact.

Scratch And Impact Resistant

KALDEWEI steel enamel combines steel and glass, making it durable and greatly resisting mechanical stress. Its resilience is greater than standard material as it is tougher than Acrylic.

Easy To Clean & Hygienic

The surfaces of KALDEWEI steel enamel will not allow dirt and bacteria to gather, making it extremely hygienic and easy to clean.

UV Resistant

KALDEWEI steel enamel has unique properties that help the product retain its original colour for a long time; it does not fade or turn yellow.

100% Sustainable

All products made using special KALDEWEI steel enamel are entirely recyclable as their source is natural raw materials, i.e. glass and steel.

Chemical Resistant

Most detergents, cosmetics, perfumes, bath salts, oils and other additives or general-purpose household cleaning agents cannot damage the KALDEWEI steel enamel.

Beautiful Shape Forever

The durable KALDEWEI steel enamel remains unaffected by changes in temperature and, therefore, will not suffer cracks or moisture damage.

Optional: EasyClean Finish

KALDEWEI EASY-CLEAN FINISH can be opted for so that the water will roll off the surface of the bathtub, sweeping away all dirt and lime particles along

Optional: Full Or Semi Anti-Slip Enamel

KALDEWEI full or Semi anti-slip system comes certified with the German technical inspection association TUV Rhineland for full anti-slip properties compliant with quality class B for wet barefoot areas (DIN 51097) and quality class R 10 for full anti-slip characteristics within working or work areas with enhanced slipping risk (DIN 51130).

Steel Enamel

Steel enamel is a mixture of steel and glass - natural materials with unique properties. It harnesses the strengths of both materials and is hard-wearing enough for bathtubs, showers and basin surfaces, as it protects the surface and retains its value over the decades.
