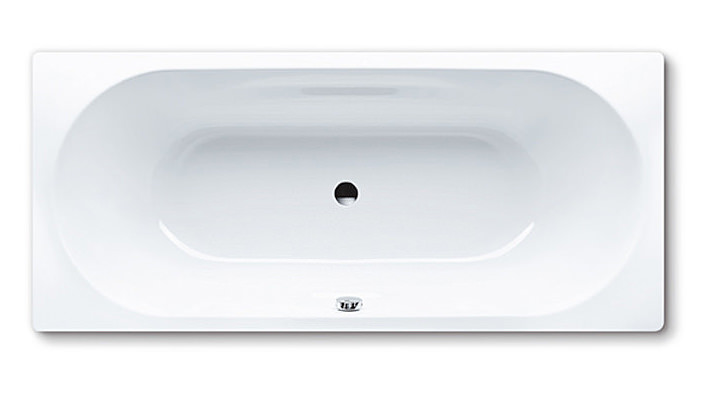

Kaldewei Ambiente Vaio Duo Double Ended Steel Bath 1800 x 800mm

Kaldewei Ambiente Vaio Duo 233010110001 Details

Kaldewei is one of Europes largest manufacturers of steel enamel baths. The Vaio Duo Double Ended Bath has been manufactured by the company and is of superior quality and uses the latest technical innovations. Thats why this robust white bath is appreciated by millions of customers in the UK. It is a high-quality, long-lasting bathtub manufactured with special steel enamel 3.5 mm.

This masterful oval tub is a display of timeless beauty, opulence, and sparkling exuberance. A pristine white, delicately curved shape makes the tub the centre of attention. Glittering bath filler taps, wastes and grips can give you the potential of tremendous design possibilities with the tub. This rectangular bath is clean and hygienic, acid impact-resistant, scratch-proof and long-lasting and is supplied with 30 years of guarantee against any manufacturing defects.

Key Features

✔It comes in Alpine white finish
✔Made of steel enamel
✔Integrated armrests
✔Water Capacity: 155 litres
✔30 years guarantee from Kaldewei against manufacturing defects.

Size [mm]: 1800mm x 800mm x 430mm [Length x Width x Depth]
Size [cm]: 180cm x 80cm x 43cm [Length x Width x Depth]
Bath with or without grip hole [Optional]
Standard coating and EasyClean Coating bath available [Optional]
Suitable to use with Anti-Slip and Full Anti-Slip [Optional]
Supplied without tap hole
Double-ended bath
Centrally positioned drain hole
Height with feet: 550 - 590 mm (55cm - 59cm)
Weight: 53 kg
70 litres displacement on average
For grip hole bath only - one-sided drilling for grip
Bath Grip [Optional]
Leg-set 5030 [Optional]
Comfort Level Waste and Comfort Level Plus waste [Optional]
Refer to the technical diagram for technical specification
Waste, Overflow and Grip shown in the image are not included

Please Note: Bath variants may be special order and delivery lead time may vary.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Centered Waste
⤷ Bath Type
: Double-Ended
⤷ Interior Shape
: Oval
⤷ Range
: Vaio Duo
⤷ Coating
: EasyClean - Sold Separately
⤷ External Length
: 1800
⤷ External Width
: 800
⤷ Tub Depth
: External - 430
⤷ Feets Included
: Sold Separately
⤷ Height Including Feet or Panel
: 550-590
⤷ Front Panel Included
: No
⤷ End Panel Included
: No

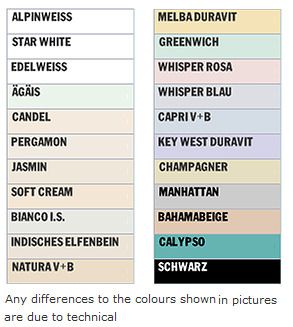

⤷ Colour
: Alpine White
⤷ Grips Included
: Sold Separately
⤷ Internal Bottom Length
: 1248
⤷ Internal Bottom Width
: 496
⤷ Internal Top Length
: 1680
⤷ Internal Top Width
: 555 680
⤷ Height of Rim
: 32
⤷ Distance Tub edge to centre of drain hole
: 900

⤷ Distance Top edge to centre of overflow hole
: 70
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 52
⤷ Distance foot end of tub edge to center of foot
: 600
⤷ Distance between the feet
: 600
⤷ Distance tub edge (foot end) to where handle start
: 772
⤷ Distance tub edge (Foot end) to where handle end
: 1028
⤷ Rim Width
: 60
⤷ Distance Between Centre Holes
: 332
⤷ Weight in kg
: 54
⤷ Slip Resistant
: Sold Separately
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 155
⤷ Country of Origin
: Denmark
⤷ Warranty/Guarantee
: 30 Years
⤷ Material
: Steel
⤷ No. of Bathers
: 2
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-drilled
⤷ Barcode
: 4001112445099

Technical Images

Kaldewei Ambiente Vaio Duo 1800 x 800mm Double Ended Steel Bath White

Add-Ons

Comfort Level And Comfort Level Plus

Comfort-level and comfort-level plus can be used to increase the immersion depth by up to 50 mm – just turn the discreet knob. comfort-level plus knob comes in combination of variable overflow, drain and inlet for filling the bathtub

No Option Selected
OP-211078 - KA 4002 Comfort Level Pop-up Waste + £178.30

Leg Set

Installing a bathtub is particularly quick and straightforward with the all-around bathtub base frame model 5030 by Kaldewei. The bath feet positions on the external points of the base of the bathtub guarantee optimum stability.

No Option Selected
OP-29520 - Leg Set 5030 RECOMMENDED
+ £38.42

£794.83

RRP: ~~£1536.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

10 Features Included In This Product Explained

Heat Resistant

The surface will not show any burn or smoke marks when hot objects are in contact.

Scratch And Impact Resistant

KALDEWEI steel enamel combines steel and glass, making it durable and greatly resisting mechanical stress. Its resilience is greater than standard material as it is tougher than Acrylic.

Easy To Clean & Hygienic

The surfaces of KALDEWEI steel enamel will not allow dirt and bacteria to gather, making it extremely hygienic and easy to clean.

UV Resistant

KALDEWEI steel enamel has unique properties that help the product retain its original colour for a long time; it does not fade or turn yellow.

100% Sustainable

All products made using special KALDEWEI steel enamel are entirely recyclable as their source is natural raw materials, i.e. glass and steel.

Chemical Resistant

Most detergents, cosmetics, perfumes, bath salts, oils and other additives or general-purpose household cleaning agents cannot damage the KALDEWEI steel enamel.

Beautiful Shape Forever

The durable KALDEWEI steel enamel remains unaffected by changes in temperature and, therefore, will not suffer cracks or moisture damage.

Optional: EasyClean Finish

KALDEWEI EASY-CLEAN FINISH can be opted for so that the water will roll off the surface of the bathtub, sweeping away all dirt and lime particles along

Optional: Full Or Semi Anti-Slip Enamel

KALDEWEI full or Semi anti-slip system comes certified with the German technical inspection association TUV Rhineland for full anti-slip properties compliant with quality class B for wet barefoot areas (DIN 51097) and quality class R 10 for full anti-slip characteristics within working or work areas with enhanced slipping risk (DIN 51130).

Steel Enamel

Steel enamel is a mixture of steel and glass - natural materials with unique properties. It harnesses the strengths of both materials and is hard-wearing enough for bathtubs, showers and basin surfaces, as it protects the surface and retains its value over the decades.

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

james Asked :
Hi - I see this bath does not come supplied with tap holes drilled. Is it possible/intended that tap holes are drilled by us in the bath where we want them to go, or is this bath only for use with wall-mounted taps?

Answered By QS Team

The Steel Baths cannot be drilled as you need specialist equipment, which many plumbers do not have. This bath is for wall-mounted taps, and should you require Steel Baths with tap holes; you can choose from several steel baths by clicking here.
