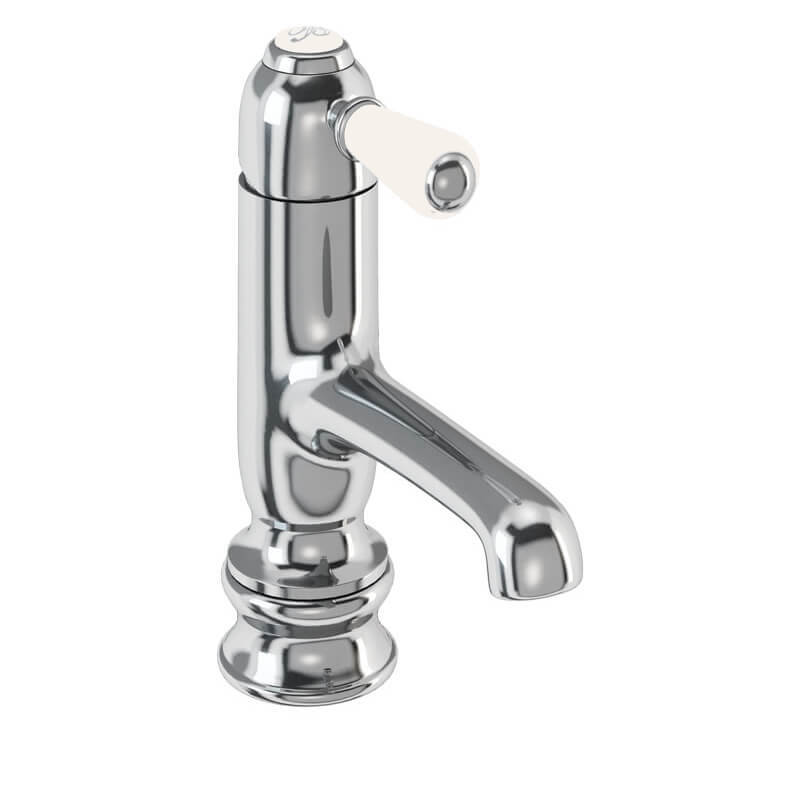

Burlington Chelsea Chrome Straight Mono Basin Mixer Tap

Burlington Chelsea CH19 Details

Lift the lever of this breathtaking Straight Mono Basin Mixer Tap from Burlington Chelsea with a flick of a finger, and you are on your way to a sublimely invigorating freshen-up experience. The pleasure of a refreshing wash is all yours with the chrome-plated, traditional style tap. You may receive unlimited compliments after installing this graceful utility at your basin. It comes to you with a 15-year guarantee from the manufacturer and is available at discounted prices from QS Supplies.

Key Features

✔Manufactured from brass
✔15 years guarantee from Burlington
✔The tap comes with a flow straightener (for low water pressure) and an aerator (for high water pressure), and a Neoperl key to swap the two items out

Available with or without pop-up waste
Available with standard base and regent base
Height of standard base tap: 160mm (16cm)
Height of tap with regent base: 187mm (18.7cm)
Chrome plated finish with white accent
Traditional design
The Centre of the inlet to the Centre of the outlet is 132mm (13.2cm)
Suitable for both low and high-water pressure systems
Flow straighteners make the flow of the water cleaner, so there is less splashing
BS 5412:1996 Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar) BS EN 200:2008 Sanitary tap ware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification ACS Approved
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Chelsea
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1

⤷ Base To Spout
: 45
⤷ Spout Reach
: 132
⤷ Overall Height
: 160
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Water Saving
: Yes
⤷ Handle Style
: Lever
⤷ Compliance/Approvals/Standard
: BS 5412:1996 BS EN 200:2008
⤷ Barcode
: 5055806002524
⤷ Product Type
: Traditional Basin Tap

Additional Info & Downloads

Download the CH19 Installation Guide Pdf File Download the CH20 Installation Guide Pdf File

Technical Images

Burlington Chelsea Chrome Straight Mono Basin Mixer Tap

£164.30

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

5 Features Included In This Product Explained

Neoperl Aerator

Neoperl aerators control the flow stream's straightness and diameter while reducing splashes by adding air to the stream. This effectively saves water and, thereby, water bills. It is compliant with local plumbing standards and codes.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Optional: Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

Reviews & Ratings

By: Andrew From : London Overall Rating: Date: May 8, 2018 Quality

We've had this installed for a few weeks now. Fit and finish is excellent, and it matches the shower fixtures, so that's a bonus. Make sure you order carefully, though. I accidentally bought the one without the waste block, and had to exchange

Helpful?

Quality:

Style

Value for Money

By: Martin From : Bridgwater Overall Rating: Date: October 8, 2024 Reliable and high quality

Reliable and high quality.

Helpful?

Quality:

Style

Value for Money

Questions & Answers

Submit Your Questions 4 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Jayne Asked :
What does "regent base" mean in one of your products called Burlington Chelsea Chrome Straight Mono Basin Mixer Tap?

Answered By QS Team

The Regent base provides an additional 30mm height compared to a standard base, offering increased flexibility for your bathroom configuration.

Was this answer helpful?

Tony Asked :
Does this come with hot and cold flexible hoses?

Answered By QS Team

Yes, it is supplied with the inlet Flexi tails.

Was this answer helpful?

Saskia Asked :
Hi, I'm going to buy the Burlington Edwardian Cloakroom basin and like the mixer tap - is it compatible? If not, which one is? There's one in the picture of the basin that looks good.

Answered By QS Team

The Chelsea is the best fit for the single tap hole basin.

Was this answer helpful?

Jacque Asked :
How do I install the pop-up waste that comes with the CH20 Chelsea straight basin mono top?

Answered By QS Team

We have provided the installation instruction PDF; download it from the Additional Info tab of the product. It will help you with the installation of the tap.

Was this answer helpful?
