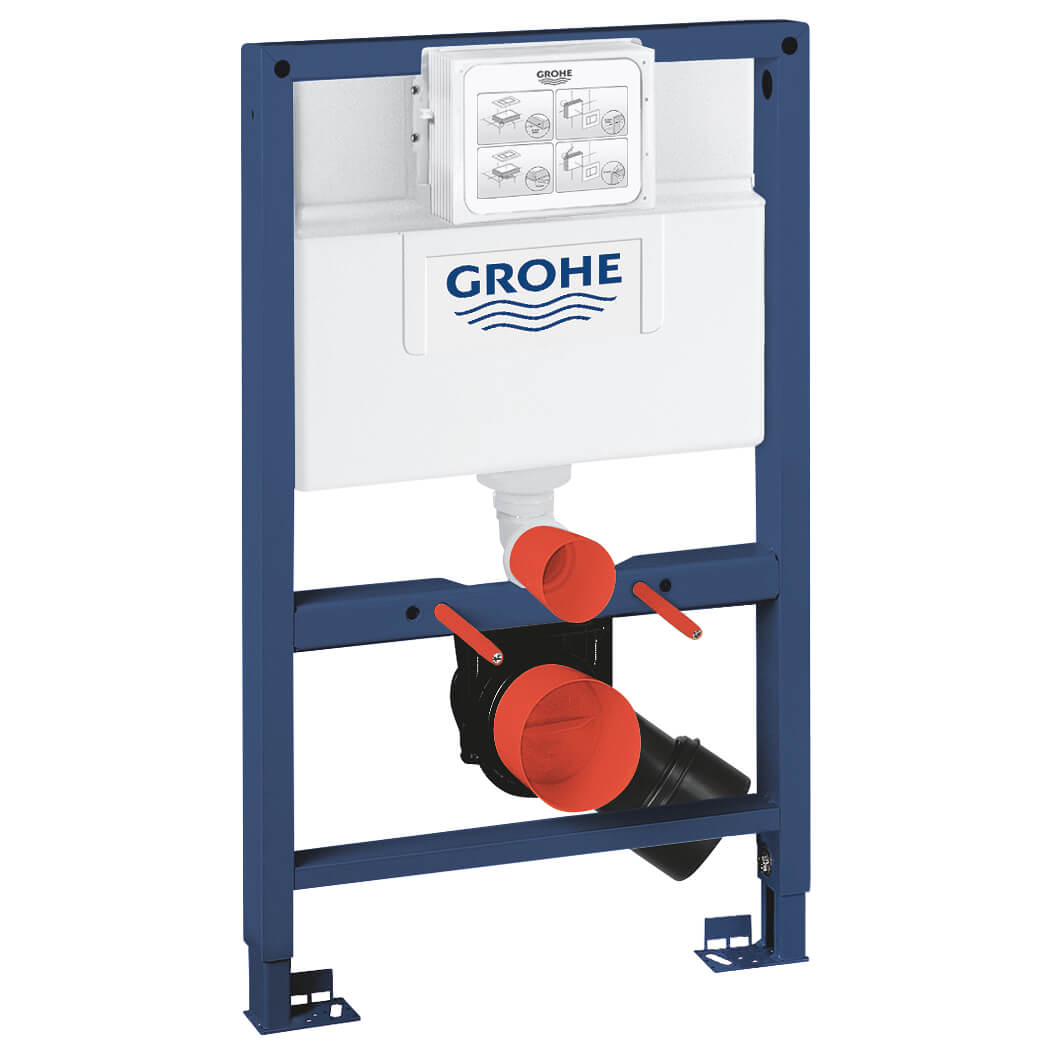

Grohe Rapid SL WC Fixing Frame With Flush

Grohe Rapid 38526000 Details

If you are particular about buying durable, high-quality accessories for your home, there is no way you can overlook this WC Fixing Frame from Grohes Rapid range. Supplied with a cistern flush that enjoys a five years warranty against all manufacturing defects. The product, which boasts a self-supporting powder-coated steel frame, is suitable for single or series installation. Order it from QS Supplies and avail a huge discount.

The cistern comes complete with dual or single flush feature
Powder-coated steel frame
Self-supporting for dry-cladding
Completely pre-assembled with fixed connections for single or series installation
Size In [mm]: 500mm x 151mm x 820mm [Width x Depth x Height]
Size In [cm]: 50cm x 15.1cm x 82cm [Width x Depth x Height]
Rapid SL Wall Bracket Pair For On-The-Wall Installation - 3855800M [See Option]
2 WC fixing bolts
Distance of fixing bolts 180/230mm
PP-outlet bend diameter Ø 80/100mm
Inlet and outlet connecting set
Outlet bend diameter: Ø 90mm
Dual flush discharge valve pneumatic
Reducer diameter: Ø 90/100mm
Connection from left/right or back
Insulated against condensation
With an angle stop valve 1/2 inch and flush pipe
For horizontal flush plates
Without wall plate/actuation

Info / Size (mm)

Frame
Width: 500 mm
Height: 820 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Blue
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Powder-Coated Steel
⤷ Cistern Included
: Yes
⤷ Flush Type
: Dual Flush

⤷ Width
: 500
⤷ Depth
: 151
⤷ Height
: 820
⤷ Fixings included
: Yes
⤷ Flush Plate Included
: Sold Separately
⤷ Water Supply Connections
: Left, Right Or Back

Grohe Rapid SL WC Fixing Frame With Flush - 38526000

£226.22

RRP: ~~£402.97~~

STOCK AVAILABLITY: 6 Working-Days Approx

QS Supplies

Questions & Answers

Submit Your Questions 2 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Colin Asked :
Can the Grohe hidden cistern go any lower than 820mm? I want a Grohe unit to match my shower; if not, can you recommend what I can use in a unit that is 600x303x811?

Answered By QS Team

This is the shortest frame Grohe offers. However, it does have a 200mm play on the legs. It can be set between those heights - 785mm and 985mm.

Was this answer helpful?

andreas Asked :
I would like to know if the height of the mechanism is adjustable from 820mm to 1020mm? I have a low wall behind the toilet of 1meter height, and I wondered if this model is OK to use and have the flash button on the top of the wall?

Answered By QS Team

The Grohe Fixing frame is adjustable and can be used on a 1 Meter wall with the flush button on top of the wall.

Was this answer helpful?
