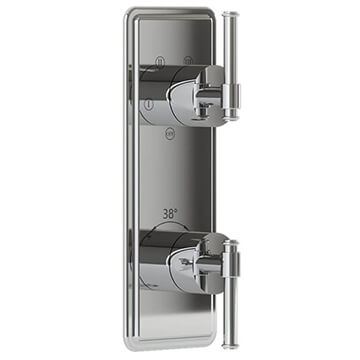

Hudson Reed Kristal Triple Concealed Thermostatic Shower Valve

Hudson Reed Kristal KRI3211 Details

Hudson Reed Kristals Triple Concealed Shower Valve with Diverter is what every modern bath area requires. It is safe, efficient, aqua-friendly and constructed for prevailing lifestyles. Suitable for horizontal or vertical installation, it is supplied with a rectangular backplate. Conforming to the required manufacturing standards, it also comes with the exact flow control to prevent wastage. A fully integrated safety system ensures against scalding or any other mishap and a 20-year guarantee vouch against manufacturing defects, if any.

Key Features

✔1/4 turn ceramic disc cartridge
✔Manufactured using the latest technique of thermostat
✔Accurate flow control with excellent flow rate even at low pressure
✔Valves are thermostatically controlled using a Valquest patented cartridge
✔Twenty-year from guarantee Hudson Reed against manufacturing defects

Choice of different finishes: Chrome, Matt Black and Brushed Brass - [Optional]
Available in different variants: Without Diverter or With Diverter - [Optional]
Back plate size [mm]:120mm x 138mm x 280mm [Width x Depth x Height]
Back plate size [cm]: 12cm x 13.8cm x 28cm [Width x Depth x Height]
Wall cavity required: 74.5mm (7.45cm)
Minimalist sleek design
Backplate shape: Rectangular
Handle design: Cross-head
It can be installed vertically or horizontally
Mount Type: Wall/ Recessed
Thermostatic control to +/- 2 to 3°C even if the water pressure fluctuates
In the event of hot or cold water failure, the valve will shut down the water supply, providing full thermal protection and preventing scalding
The patented cartridge is highly resistant to calcium buildup - even in hard water areas
The cartridge is fully reversible, meaning it doesn't need re-plumbing if hot and cold supplies are the wrong way around it
Remove the cartridge, turn 180°, and replace
Features stain rust-resistant
Suitable for all plumbing systems - gravity-fed pumped unvented high pressure or fully modulated combi-boilers
Excellent flow rates - even at low pressure
For complete size details, please refer to the technical drawing
Download the Customer Data Sheet and Installation Instruction PDF file from the Additional Info Section
Detail For Without Diverter:
WRAS Approval No: 2204707
Pipe size: 15mm (1.5cm)
No of Outlets: 2
Weight: 5.88kg
Suitable for low-pressure water system
Requires a minimum of 0.1 bar or above water pressure to operate smoothly
Flow rate (1/min): 0.1 Bar - 5.5, 0.2 Bar - 7.1, 0.5 Bar - 14, 1 Bar - 20, 2 Bar - 29, 3 Bar - 44
Detail For With Diverter:
Pipe centres: 125mm (12.5cm)
Pipe size: 15mm (1.5cm) and 22mm (2.2cm)
No of Outlets: 3
Weight: 3.93kg
Suitable for medium-pressure water system
Requires a minimum of 0.5 bar or above water pressure to operate smoothly
Flow rate (1/min): 0.5 Bar - 13, 1 Bar - 17, 2 Bar - 24, 3 Bar - 27

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Kristal
⤷ Colour
: Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: ABS | Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Overall Height
: 280
⤷ Min-Max Wall Mount
: 74.5
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 0.5 bar - 13 | 1 bar - 17 | 2 bar - 24 | 3 bar - 27
⤷ Handle Style
: Crosshead

⤷ WRAS Approved
: Yes
⤷ Depth
: 137.5
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 120
⤷ Backplate Height
: 280
⤷ Number of Handles
: 3
⤷ Number of Outlet
: 2
⤷ Orientation
: Vertical | Horizontal
⤷ Barcode
: 5055146151739
⤷ Plumbing Option
: Concealed
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: 1/4 Turn Ceramic Disc

Additional Info & Downloads

Download the Customer Data Sheet For Without Diverter Pdf File Download the Customer Data Sheet For With Diverter Pdf File Download the Installation Instruction Pdf File

Technical Images

Hudson Reed Kristal Triple Concealed Thermostatic Shower Valve

£195.88

RRP: ~~£580.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Combi-Boiler System

The showerhead or shower system is suitable for use with a Combi-Boiler System. This system heats cold water on demand, relying solely on mains pressure to move water around your home. These are suitable for mixer showers, as they provide hot water instantaneously and at the highest pressure.

Unvented System

The unvented water systems usually have a separate hot water cylinder, which is pre-heated via a combi boiler or other heating sources to store a quantity of hot water at mains pressure.

Optional: Diverter In Showers

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
