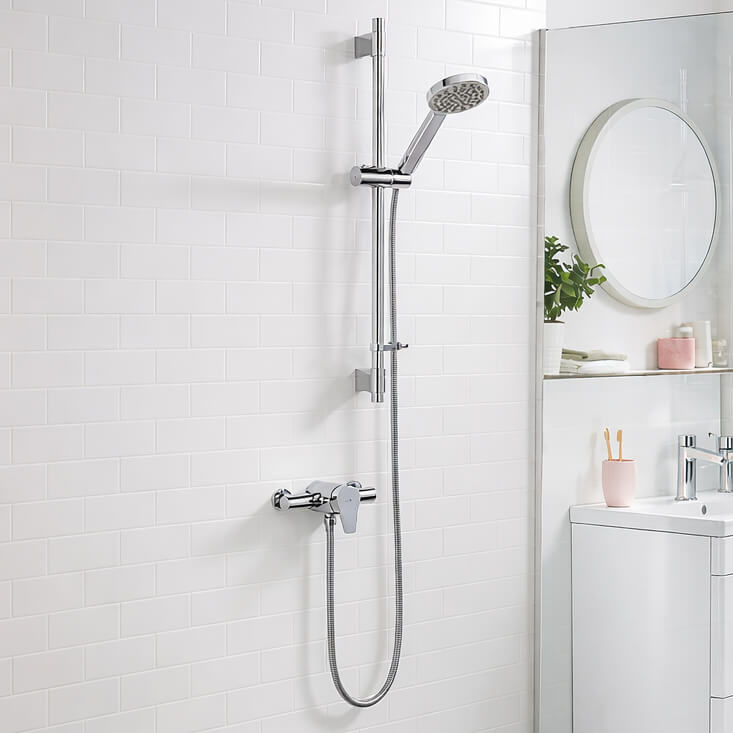

Bristan Capri Chrome Shower Valve With Adjustable Riser

Bristan Capri CAP3 SHXAR C Details

It is raining deals at QS Supplies, and this particular one is going to leave you spellbound. Get a seductive discount on an equally enchanting shower solution - the Bristan Capri Shower Valve complete with Adjustable Riser Kit. This elegant offering is fabricated from the best quality materials and perfected with a stunning chrome finish. The riser rail is formatted with adjustable positioning to allow the brackets to fit even in existing holes. Easy to install and practical and efficient to use, this contemporary beauty comes with a 5 years guarantee.

Manufacturing code of this product: CAP3 SHXAR C
It comes in a fabulous chrome finish
Thermostatic cartridge maintains showering temperature to +/- 1 degree
Automatic shut-off in the event of hot or cold water supply failure,
thus reducing the risk of injury
Thermostatic cartridge with preset temperature stop at 42°C
Maximum Hot Water Supply Temperature: 80°C
Supplied with 1.5m shower hose, riser rail, hose retainer, and single function rub clean hands
Chrome plated to BS EN 248
Supplied with 1 x 7L/min and 1 x 5L/min flow regulators
TMV2 thermostatic control for a higher level of performance and protection
Adjustable fixing brackets on the riser rail enable existing screw holes to be used
Height of rail: 660mm - (66cm)
Inlet centre of the valve: 110mm - 155mm (11cm - 15.5cm)
Inlet connections: 15mm compression elbows
Suitable for low water pressure system
Required minimum 0.1 bar or above 5.0 bar water pressure
Download the Installation Instruction PDF File From The Additional Info Section
Refer to the technical diagram for complete technical dimensions

Info / Size (mm)

Shower Kit
Height: 660 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Exposed
⤷ Inlet Centres
: 110-155
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500

⤷ Configuration
: Valve, Slide Rail And Handset Kit
⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: BS EN 248, WRAS, TMV2
⤷ Product Type
: Shower Set
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Rail Length
: 660

Additional Info & Downloads

Download the Installation Instruction Pdf File

Bristan Capri Chrome Shower Valve With Adjustable Riser

£126.00

RRP: ~~£279.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

8 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Drenching

Drenching in Bristan showers means these showers soak you thoroughly, giving you the most indulgent showering experience.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.
