Imex Dv8 Chrome Small Basin Mixer Tap With Clicker Waste

Imex Dv8 DVSBAS Details

Do you want to make your basin the most endearing sanitary-ware of the bathroom? Then complement your basin with Imex Dv8 Small Basin Mixer Tap. The magnificent basin adornment will heighten the visual charm of the basin. The single lever faucet with slotted clicker waste is made from solid brass and finished in shiny chrome. Highly functional and efficient in performance, this creation, included with WRAS approved fittings carry a 10-year guarantee, against any manufacturing defects, from the manufacturer.

Available in 2 heights - 135mm and 165mm
Slotted clicker waste
Chrome finish
Size [mm]: 125mm x 135mm [Depth x Height]
Size [cm]: 12.5cm x 13.5cm [Depth x Height]
Features single lever operation
The manufacturing code of this product is DVSBAS
The centre of the inlet to the centre of the outlet is 100mm [10cm]
The minimum water pressure Recommended for smooth working is 0.2 bar [LP-Low Pressure]
The minimum flow rate of this product is 4.5 litres per minute at 0.2 bar water pressure

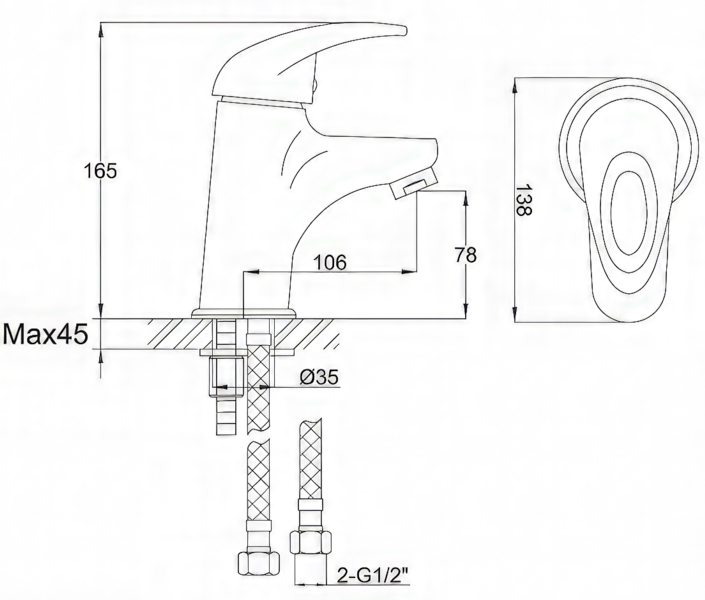

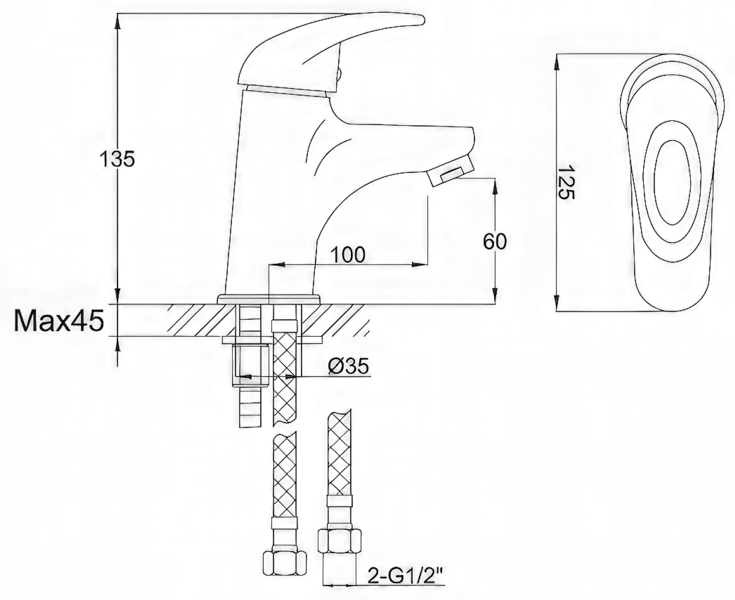

For complete size details, please refer technical drawing

Info / Size (mm)

Tap
Pipe Centre: 100 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: DV8
⤷ Tap Body Shape
: Square
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Handle Material
: Brass
⤷ Base To Spout
: 60
⤷ Spout Reach
: 100

⤷ Overall Height
: 135
⤷ Depth
: 125
⤷ Max. Deck Thickness
: 45
⤷ Inlet Connections
: 2-G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Clicker
⤷ Flow Rates (l/min)
: 0.2 bar - 4.5
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 35
⤷ Waste Included
: Yes
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Barcode
: 5057199224040
⤷ Product Type
: Cloakroom Basin Tap

Imex Dv8 Chrome Small Basin Mixer Tap With Clicker Waste

£54.59

RRP: ~~£99.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...
