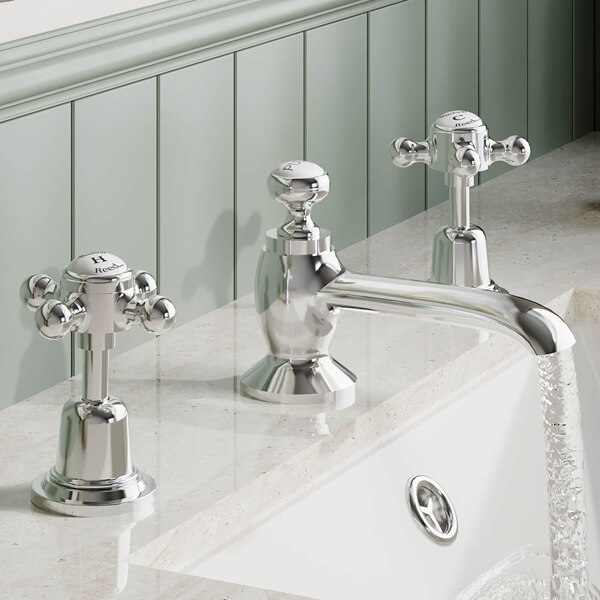

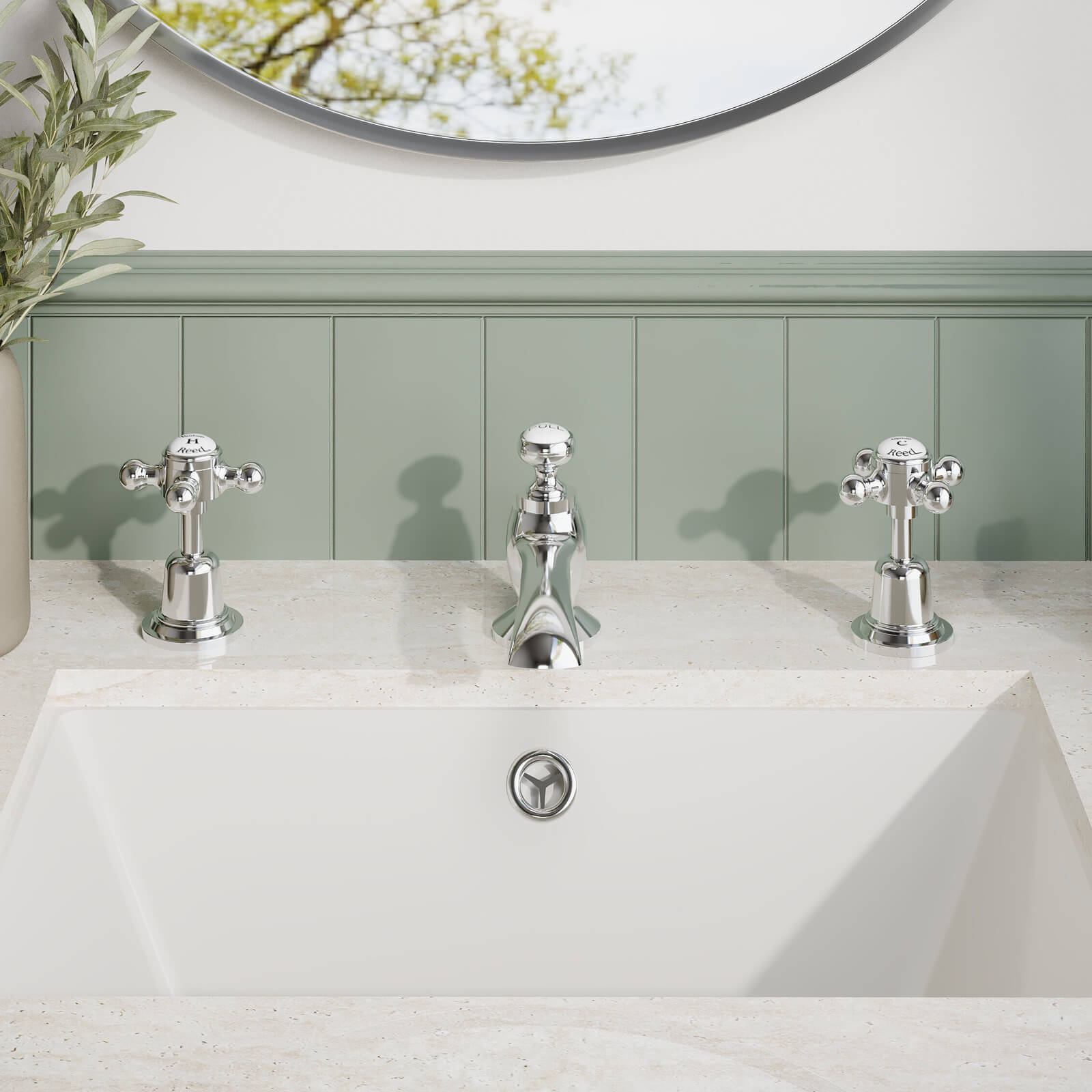

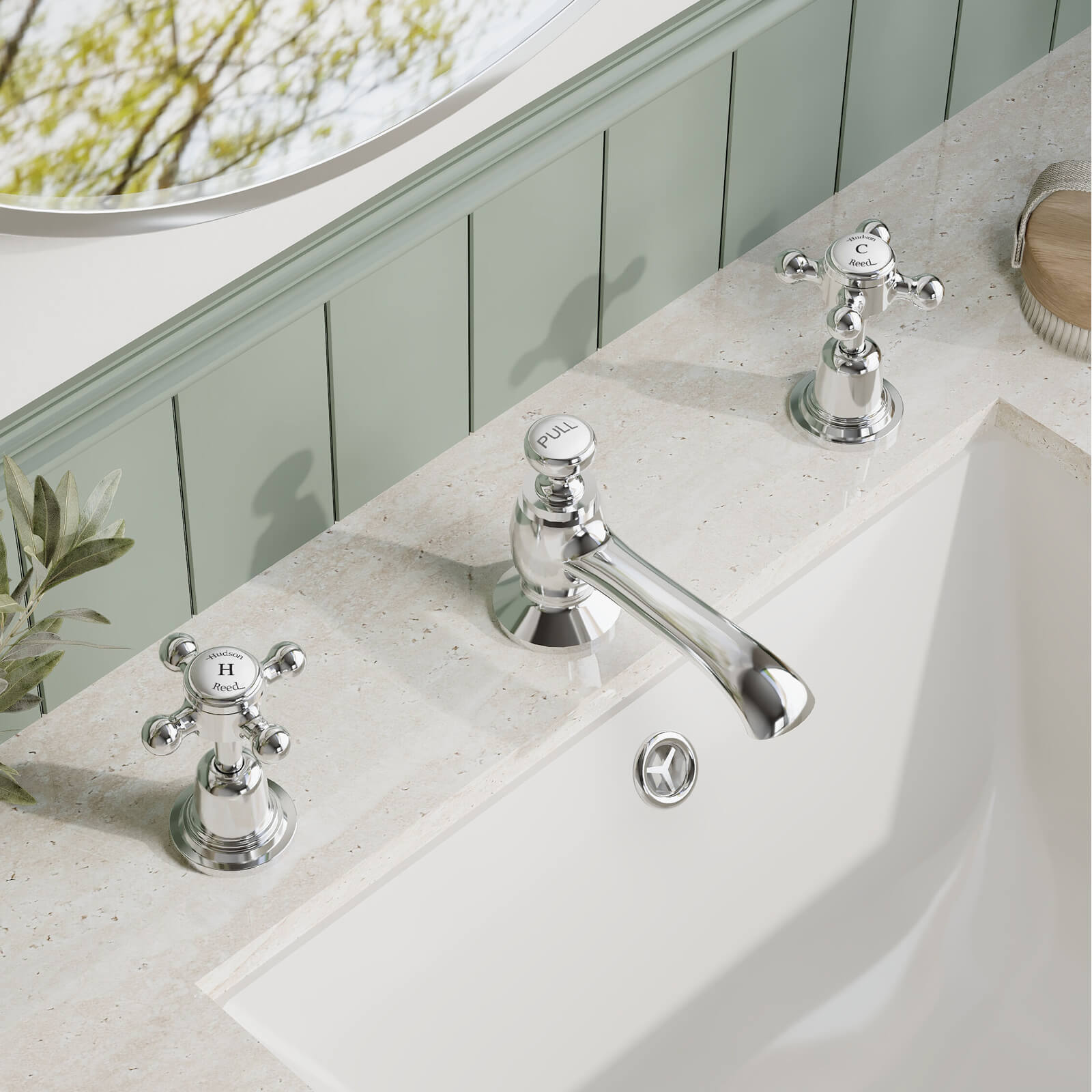

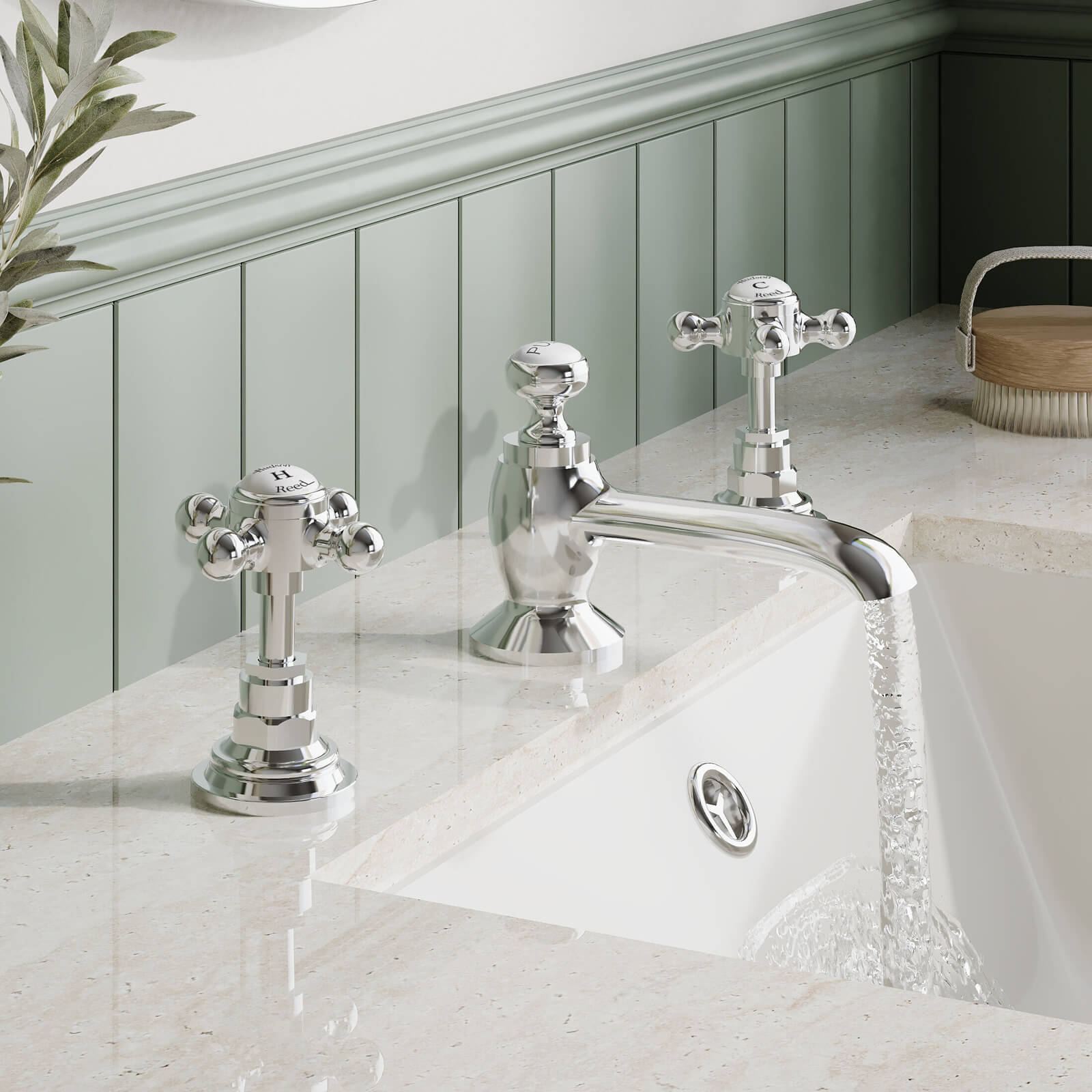

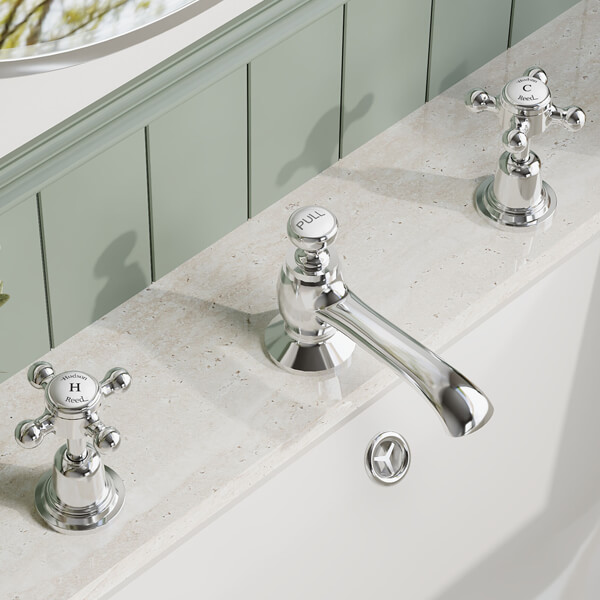

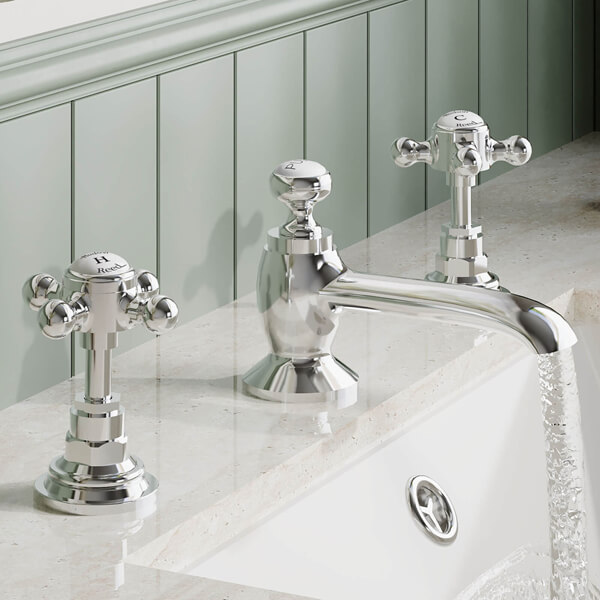

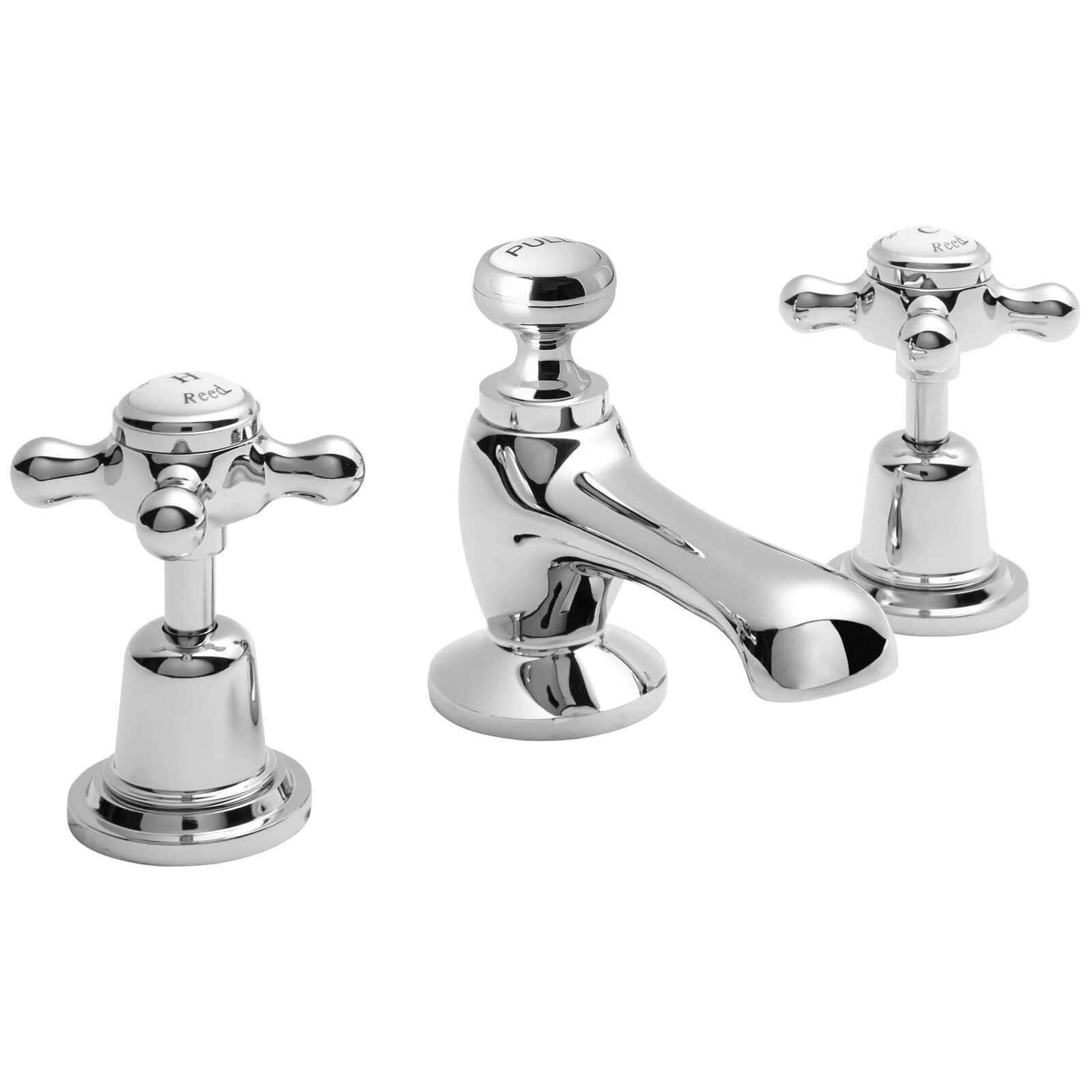

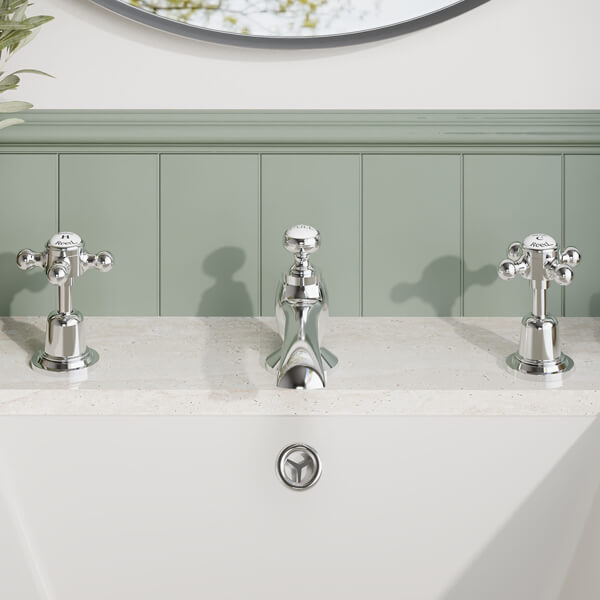

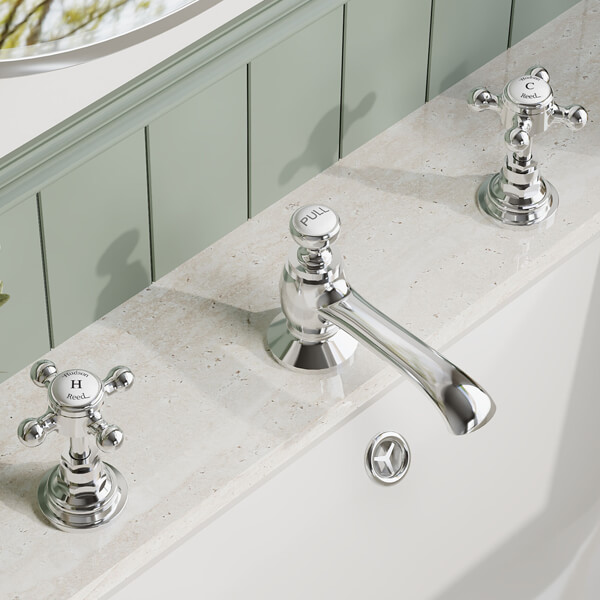

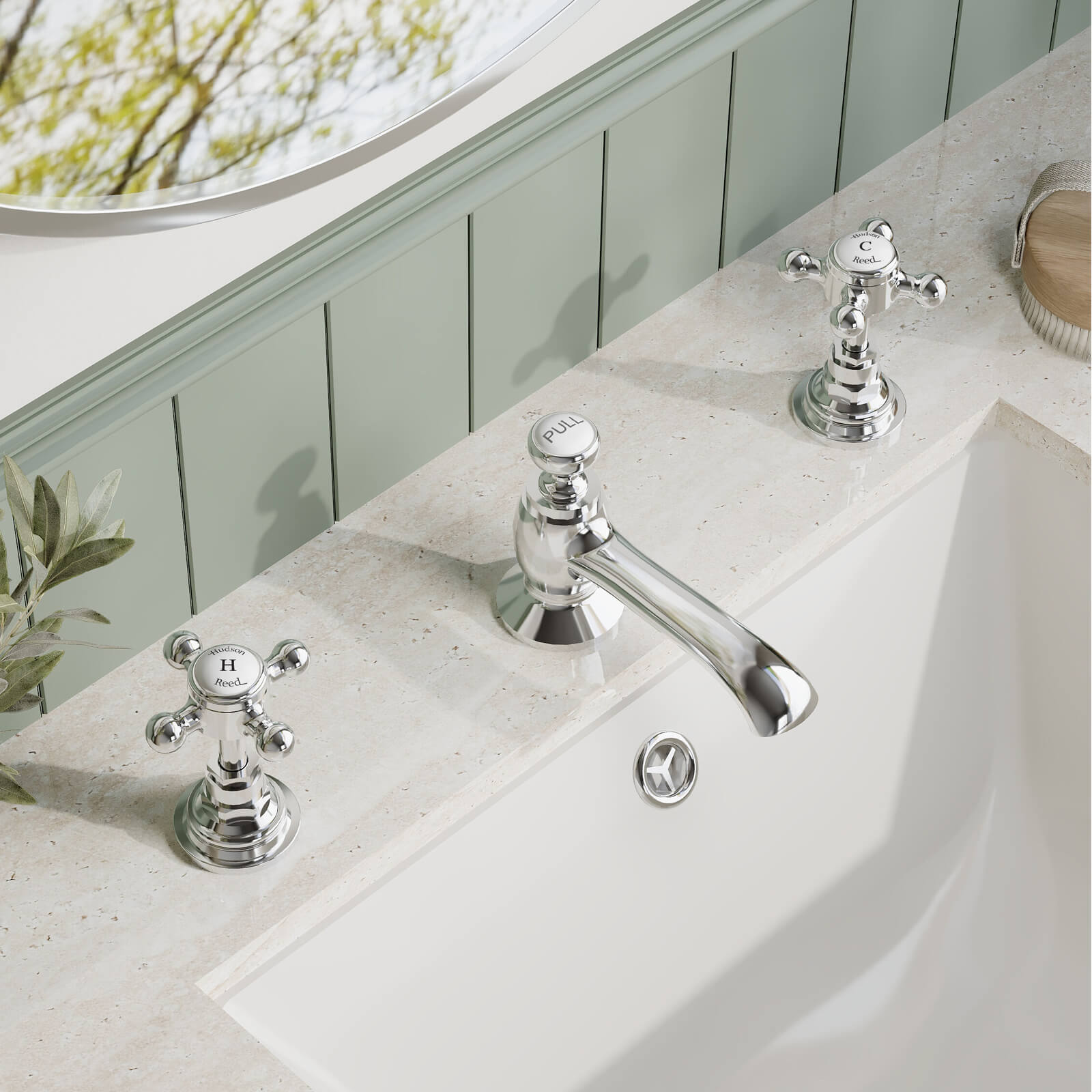

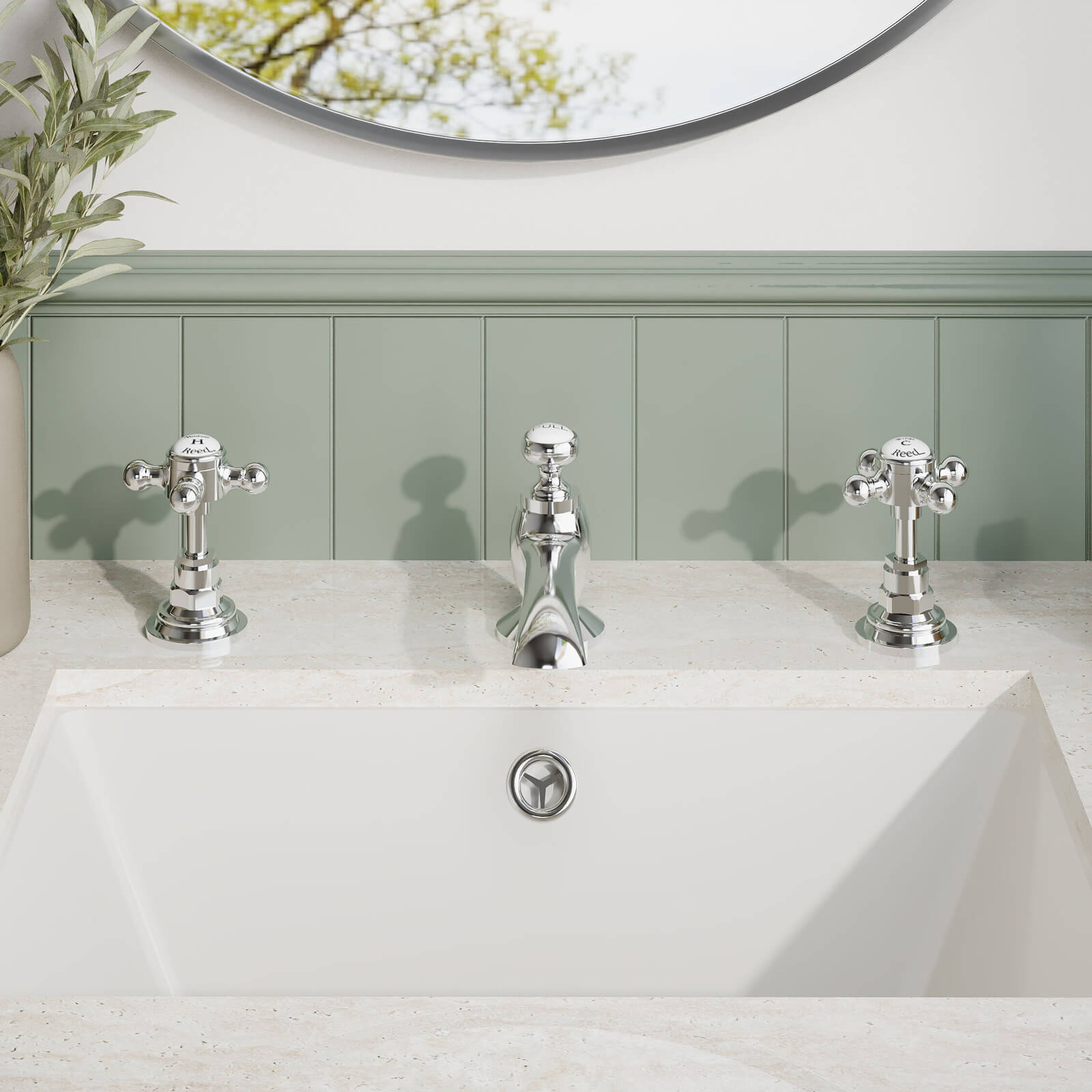

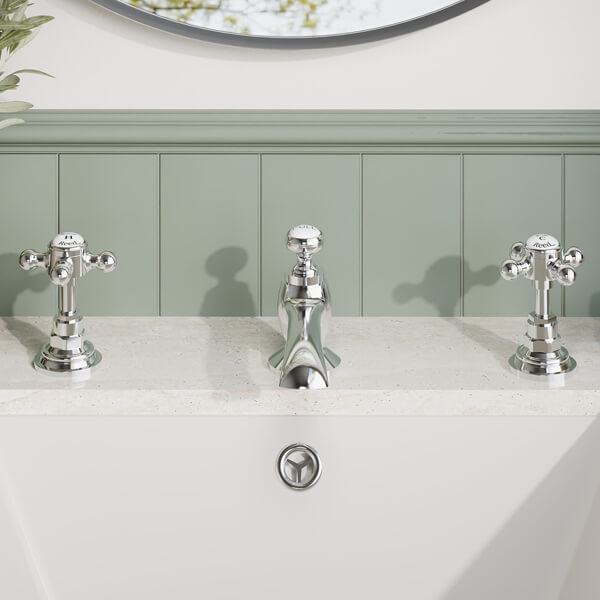

Hudson Reed Topaz 3 Tap Hole Basin Mixer Tap With Pop Up Waste

Hudson Reed Topaz BC307HX Details

A true star in this Basin Mixer Tap comes to you from Hudson Reeds much-appreciated Topaz range. Featuring double lever handles with extended spout in the middle, this 3-hole tap comes in lustrous chrome finish, adding glitter and gleam to the sink. The traditional creation provides ease of operation and delivers unmatched performance when used with a classic basin. The product, supplied with pop-up waste, is high on quality. Plated perfectly with chrome finish, it carries 20 years guarantee against all manufacturing defects. The model, easy to install, is ideal for low-pressure water systems. Please buy it from your favourite online store and enjoy a great discount.

Available in crosshead or lever handle [Optional]

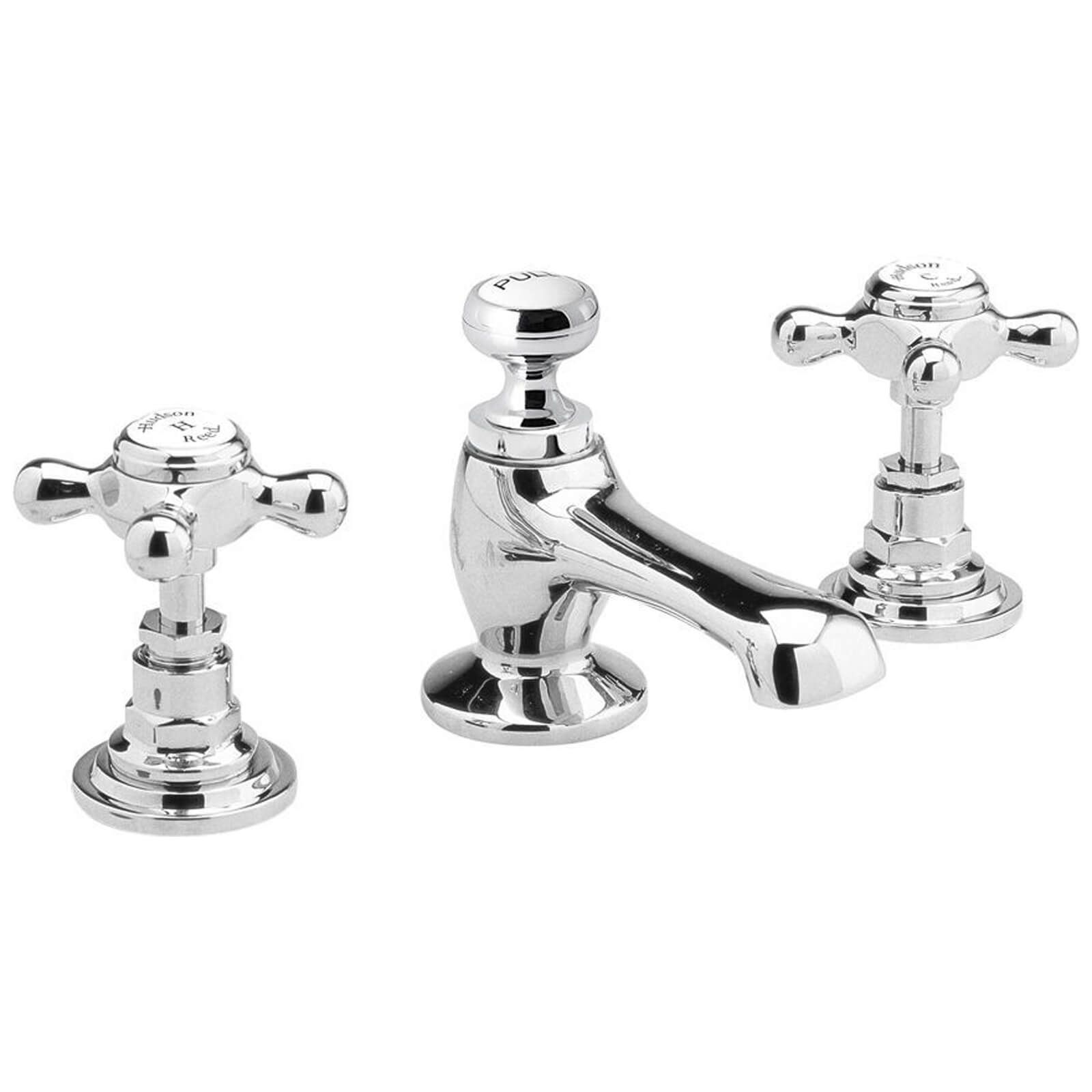

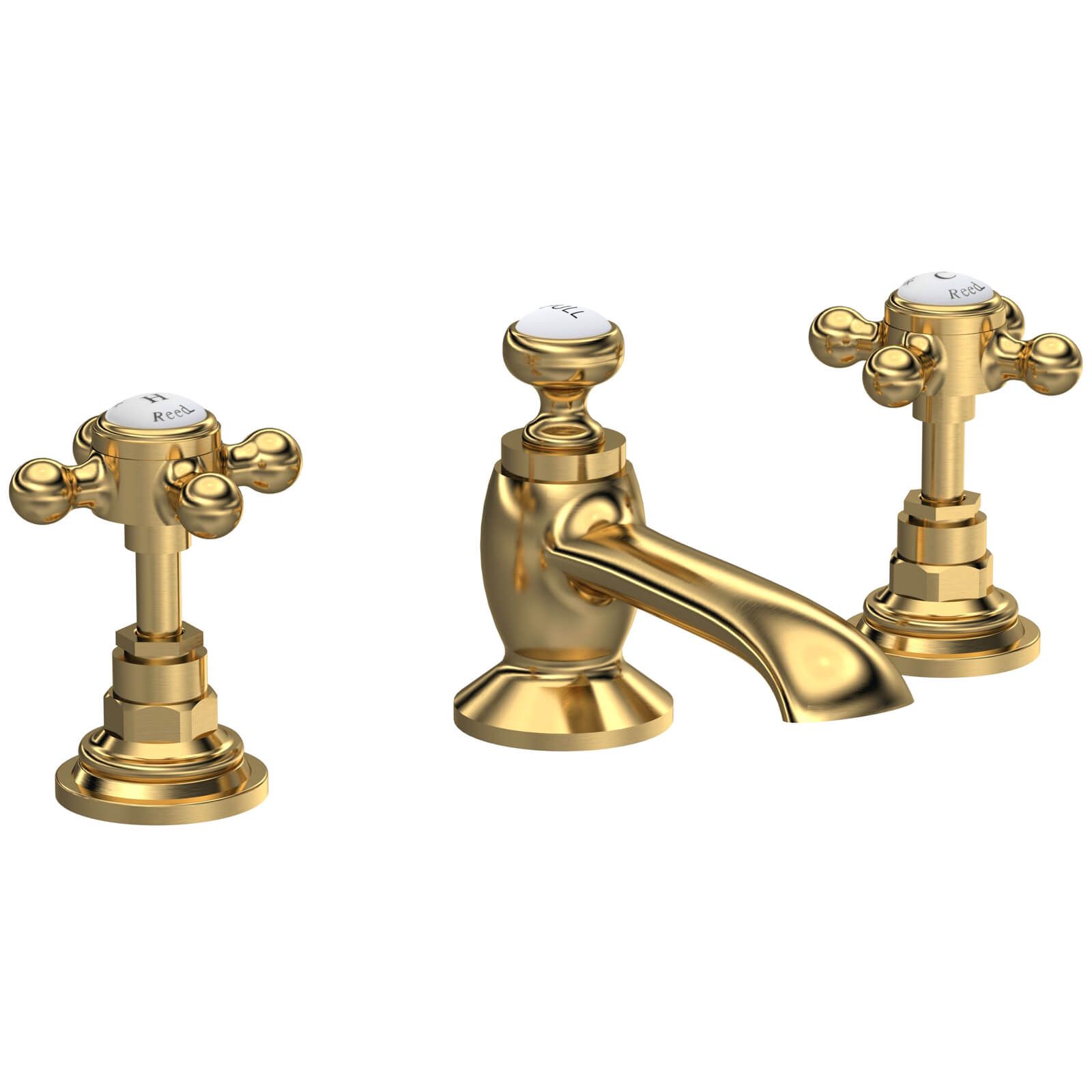

Taps come in Hexagonal or Dome collars [Optional]

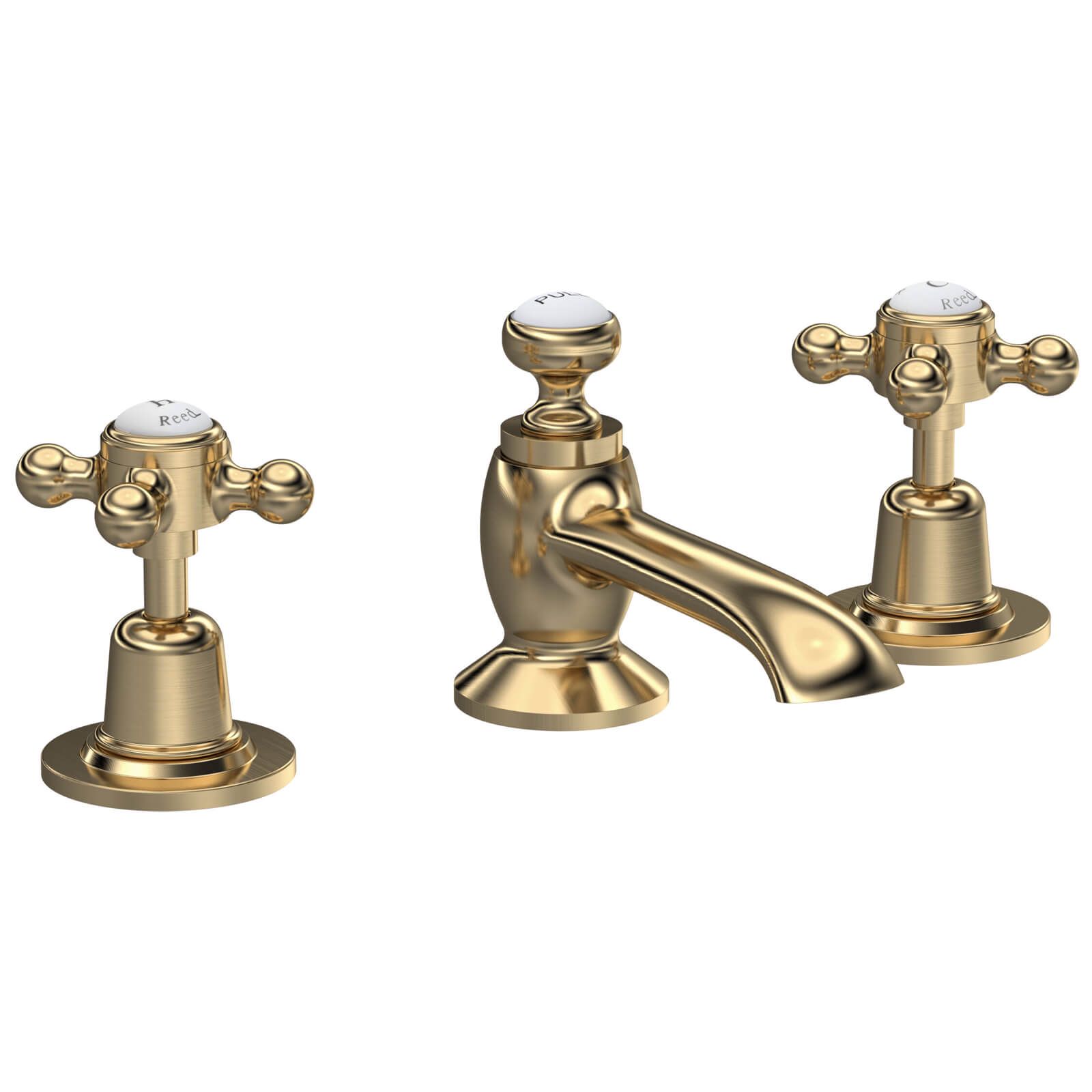

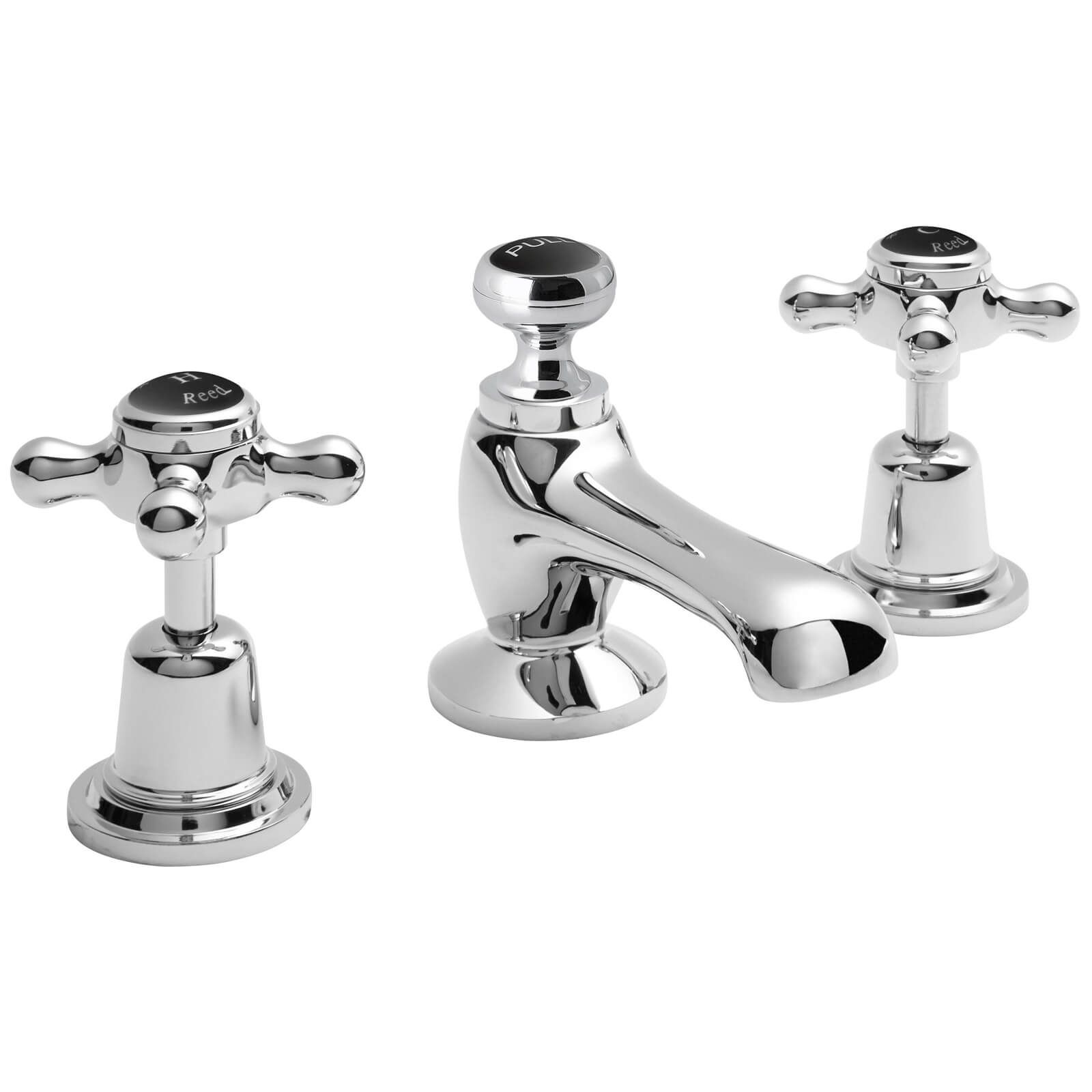

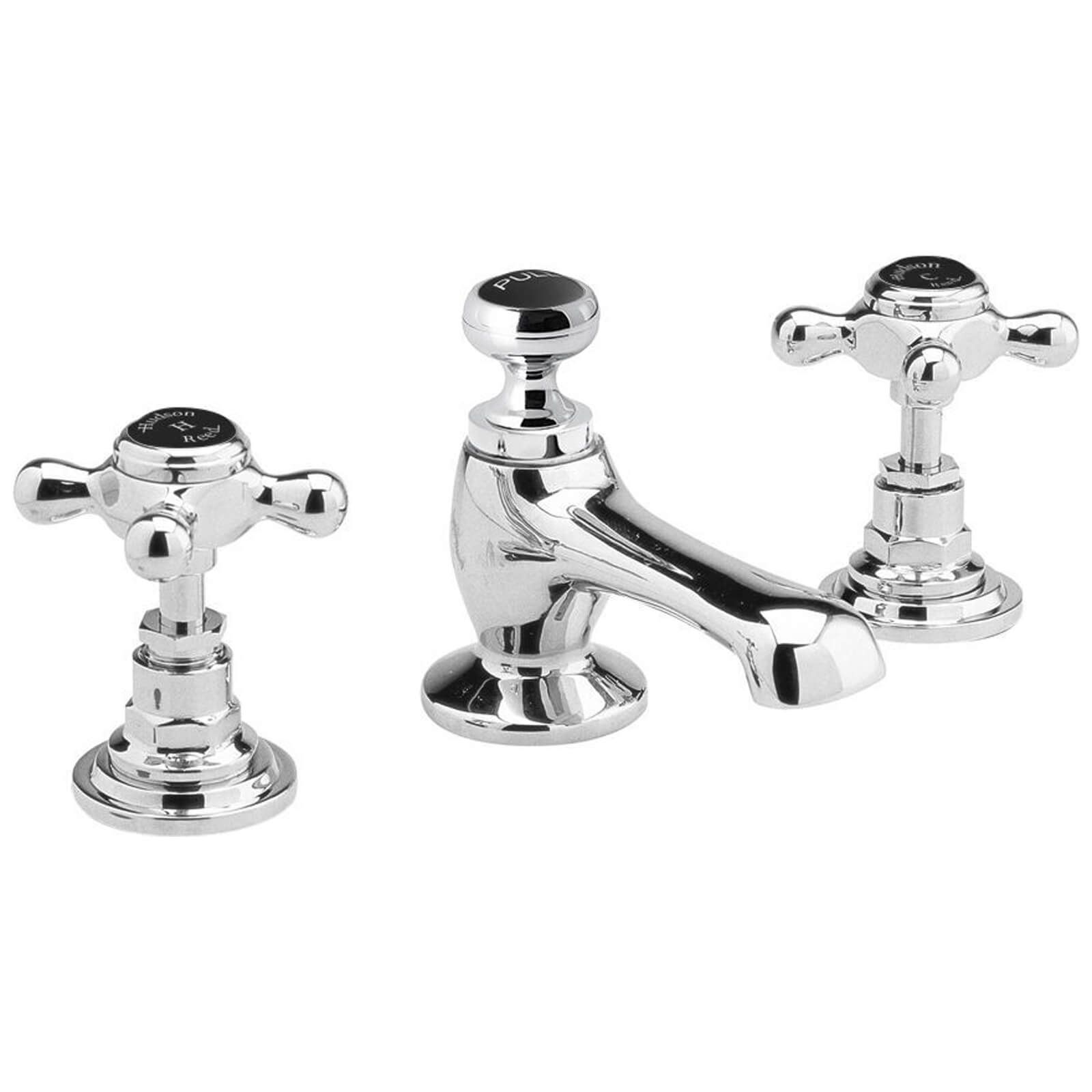

Choice of white or black finish available [Optional]
Traditional design
Deck mounted installation
Tap Installation Holes Require: 3
Suitable for low-pressure systems
Required minimum 0.1 bar water pressure for smooth flow
The minimum flow rate is 5.6 litres per minute at 0.1 bar water pressure
Size [mm]: 246mm x 140mm x 94mm [Width x Depth x Height]
Size [cm]: 24.6cm x 14cm x 9.4cm [Width x Depth x Height]
Pipe Size: 15mm (1.5cm) (1/2inch BSP)
Centre of the inlet to centre of outlet: 110mm (11cm)
Refer to the technical diagram for the complete size detail
Download the Fitting Instruction and Customer Data Sheet PDF File from the Additional Info Section

Info / Size (mm)

Tap
Pipe Centre: 110 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Tap Body Shape
: Round
⤷ Range
: Topaz
⤷ Handle Position
: Left And Right
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 3
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 31
⤷ Spout Reach
: 110

⤷ Overall Height
: 94
⤷ Width
: 246
⤷ Depth
: 140
⤷ Spout Deck Mount Drill Hole Diameter
: 48
⤷ Handle Deck Mount Drill Hole Diameter
: 45
⤷ Handle Height
: 78
⤷ Inlet Connections
: G1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Waste Type
: Pop-Up
⤷ Flow Rates (l/min)
: 0.1 bar - 5.6 | 0.5 bar - 14 | 1 bar - 20.2 | 2 bar - 29 | 3 bar - 35.4
⤷ Handle Style
: Crosshead
⤷ Waste Included
: Yes
⤷ Barcode
: 5055275830703
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Fitting Instructions Pdf File Download the Customer Datasheet Pdf File

Hudson Reed Topaz 3 Tap Hole Basin Mixer Tap With Pop Up Waste

£131.05

RRP: ~~£386.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

2 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
